Product Detailed Parameters
- Description：CMC 10A 2LN SMD
- Series：ACM
- Mfr：TDK Corporation
- Package：Tape & Reel (TR)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：10A
- DC Resistance (DCR) (Max)：4mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.591" L x 0.512" W (15.00mm x 13.00mm)
- Height (Max)：0.236" (6.00mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

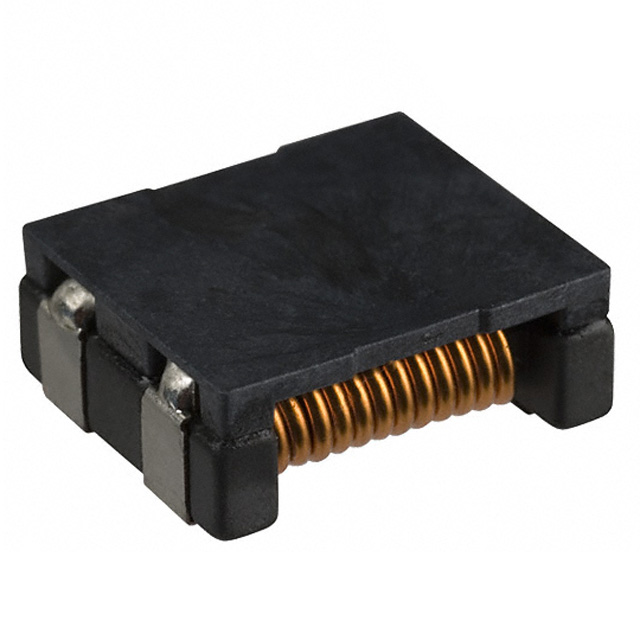

The ACM1513-551-2PL-T is a common mode filter designed for power line applications, manufactured by TDK Corporation. It features an impedance of 550 Ohms at 100 MHz and supports a maximum DC current of 10 A. The component has a maximum DC resistance of 4 mOhms and operates within a temperature range of -40°C to +85°C. It utilizes a surface mount (SMD/SMT) installation style in a 6052 (1513 metric) package with dimensions of 15 mm x 13 mm x 6 mm. The device is currently listed as end-of-life.
Feature Summary
- Provides common mode noise suppression for power lines
- Supports high current handling up to 10 A
- Low DC resistance for minimal power loss
Applications
- Power line filtering
- EMI/RFI suppression in electronic circuits
Procurement Notes
This component is officially designated as End-of-Life (EOL). Verification of availability should focus on the direct replacement part number ACM1513-551-2PL-TLHF. Confirm RoHS compliance status through official manufacturer documentation or authorized distributors before procurement planning.
Selection Notes
Select this component for power line applications requiring 10 A current capacity and 550 Ohms impedance at 100 MHz. Ensure the PCB footprint accommodates the 15x13x6 mm SMD package. Due to EOL status, evaluate the lead-free variant ACM1513-551-2PL-TLHF for new designs.
Part Context
Part of the TDK ACM series of common mode chokes. Specifically designed for power line signal integrity. The ACM1513-551-2PL-TLHF is the confirmed direct substitute, maintaining identical electrical characteristics while offering lead-free compliance.
Replacement Considerations
ACM1513-551-2PL-TLHF is the confirmed direct substitute. It shares identical electrical specifications and physical dimensions, ensuring pin-to-pin compatibility without design modification.
FAQ
What is the operating temperature range?
-40°C to +85°C
Is this component RoHS compliant?
RoHS details are available in the official datasheet; the direct replacement ACM1513-551-2PL-TLHF is explicitly noted as lead-free.
