ACM2012E-670-2P-T00

Overview

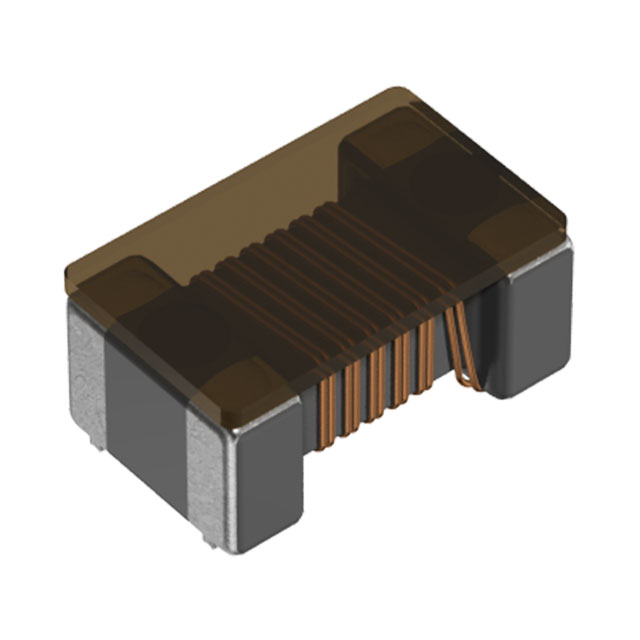

The ACM2012E-670-2P-T00 is a surface-mount common mode choke designed for high-speed differential signal lines. It provides 67 ohms of impedance at 100 MHz with a rated current of 500 mA and a rated voltage of 50 VDC. The component features a low profile height of 1.00 mm ±0.10 mm and operates within a temperature range of -40 to 85°C.

Feature Summary

• Designed for filtering noise on high-speed differential signal lines
• Low profile construction optimized for surface mounting applications
• Provides specific impedance characteristics for EMI suppression

Applications

• High-speed differential signal line filtering
• General differential signal processing circuits

Procurement Notes

Verify availability status as the ACM2012E-670-2P-T00 is listed as obsolete and no longer manufactured by TDK Corporation. Confirm lead times and substitute part numbers through authorized distributors before procurement planning.

Selection Notes

Select this component for applications requiring 67 ohms impedance at 100 MHz in a compact SMD package. Ensure the circuit environment stays within the 500 mA rated current and 50 VDC voltage limits. Verify compatibility with reflow soldering processes.

Part Context

This component belongs to the TDK ACM series of signal line common mode chokes. These devices are engineered to suppress electromagnetic interference in compact electronic designs, offering a balance between performance and small footprint requirements for modern PCB layouts.

Replacement Considerations

Direct substitutes are available from TDK. Check for equivalent impedance and current ratings in alternative part numbers.
