Product Detailed Parameters
- Description：CMC 2.8A 2LN 420 OHM SMD
- Series：ACM
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：2.8A
- DC Resistance (DCR) (Max)：55mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.185" L x 0.177" W (4.70mm x 4.50mm)
- Height (Max)：0.079" (2.00mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：420 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

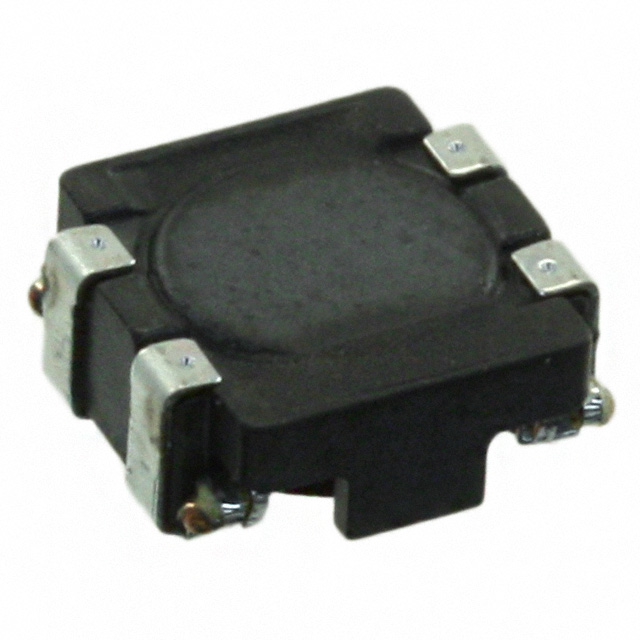

The TDK ACM4520-421-2P-T000 is a surface-mount common mode filter designed for power line applications. It features a two-channel configuration with an inductance of 1.1 uH and an impedance of 420 Ohms at 100 MHz. The component supports a maximum DC current of 2.4 A and has a maximum DC resistance of 55 mOhms. Rated for 50 VDC, it operates within a temperature range of -40°C to +85°C. The device utilizes a 1808 (4520 metric) package measuring 4.7 mm x 4.5 mm x 2 mm.
Feature Summary
- Provides common mode noise suppression for power lines
- Features a compact surface-mount design for PCB integration
- Utilizes ferrite core material for effective filtering
Applications
- General use common mode filtering
- Power line noise suppression
Procurement Notes
Verify the specific part number ACM4520-421-2P-T000 against official TDK documentation to confirm electrical parameters and physical dimensions. Ensure compatibility with required operating temperatures and current ratings before procurement. Cross-reference manufacturer datasheets for accurate handling and mounting specifications.
Selection Notes
Select this component when a 1.1 uH inductance and 420 Ohm impedance are required for common mode noise reduction. Consider the 2.4 A current rating and 55 mOhm resistance for power efficiency. The 1808 package size suits space-constrained designs requiring robust EMI suppression on power lines.
Part Context
This component belongs to the TDK ACM series of common mode chokes. It is categorized under EMC components and falls within the broader class of inductors, chokes, and coils. The ACM4520V series represents a specific variant within this family, sharing similar form factors but potentially differing in electrical characteristics.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source data. Verify compatibility with alternative components by matching inductance, impedance, current rating, and package dimensions.
