ACM4532-102-3P-T

Overview

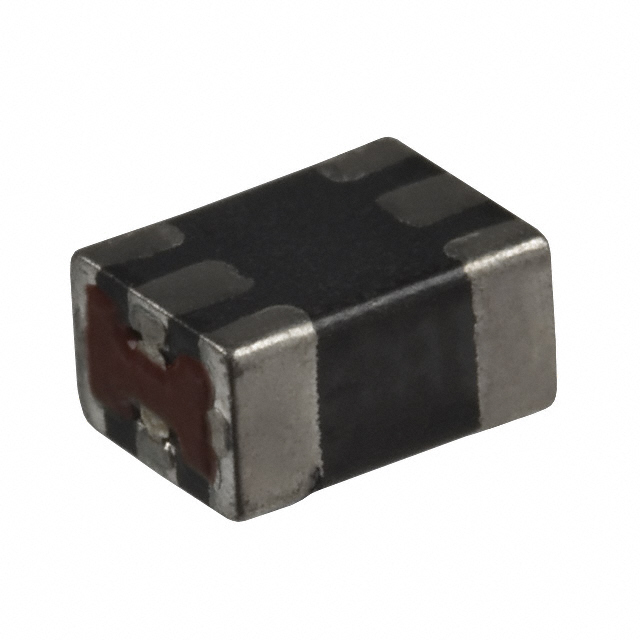

The ACM4532-102-3P-T is a wire-wound chip-type common mode filter manufactured by TDK Corporation. It features a 1812 (4532 Metric) surface mount package with six leads. The component provides an impedance of 1000 Ohms at 100 MHz and supports a rated current of 200 mA. Its DC resistance is maximized at 600 milliohms, while the DC voltage rating stands at 20 volts. The device operates within a temperature range of -25°C to 85°C.

Feature Summary

• Maintains common-mode filtering characteristics despite significant miniaturization
• Utilizes wire-wound construction for signal integrity
• Designed specifically for high-speed differential and general signal lines

Applications

• High-speed differential signal line protection
• General signal line noise suppression
• Common-mode interference reduction in compact electronic assemblies

Procurement Notes

Verify the specific part number ACM4532-102-3P-T against official TDK documentation to confirm availability and specifications. Ensure compatibility with design requirements regarding package dimensions and electrical ratings before procurement.

Selection Notes

Select this component when space-constrained designs require effective common-mode noise suppression on high-speed data lines. The 1812 footprint offers a balance between performance and board real estate, suitable for applications needing reliable signal integrity without excessive size.

Part Context

This component belongs to the ACM series of chip filters from TDK. These parts are engineered to provide robust electromagnetic interference mitigation in modern electronics where component density is high and signal speeds are increasing.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
