Product Detailed Parameters
- Description：CMC 4.7A 2LN 700OHM SMD AEC-Q200
- Series：ACM-V
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：4.7A
- DC Resistance (DCR) (Max)：17mOhm
- Voltage Rating - DC：80V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.217" L x 0.217" W (5.50mm x 5.50mm)
- Height (Max)：0.138" (3.50mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：700 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

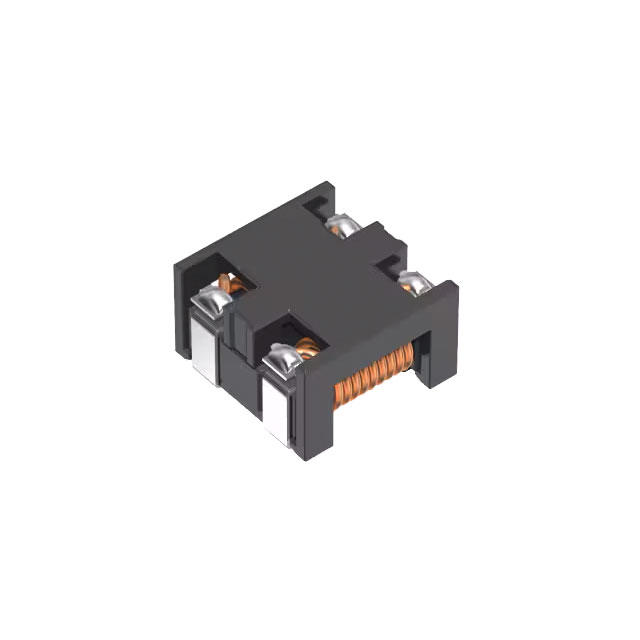

The ACM55V-701-2PL-TL00 is a surface-mount common mode filter from the TDK ACM-V series. It features a wirewound construction with an iron powder core and a square closed magnetic design. The component has a rated current of 4.7 A and a maximum DC resistance of 17 mΩ. Impedance is specified at 700 Ω with a typical inductance of 5.7 µH. Operating temperature ranges from -40°C to +125°C. Dimensions are 5.5 mm length, 5.5 mm width, and 3.5 mm height.
Feature Summary
- Utilizes exclusive square type closed magnetic cores for miniaturization while maintaining performance characteristics.
- Designed as a surface-mount common mode choke suitable for power line applications.
Applications
- Power line filtering
- Industrial equipment EMC suppression
- Consumer electronics noise reduction
Procurement Notes
Verify the specific suffix TL00 against official TDK documentation to confirm packaging details such as reel size or tape specifications. Ensure the requested quantity aligns with standard manufacturing pack sizes. Confirm RoHS compliance status directly with the manufacturer's latest certification records prior to finalizing procurement orders.
Selection Notes
Select this component when a compact form factor is required alongside high current handling capabilities up to 4.7 A. The 700 Ω impedance at 100 MHz provides effective noise attenuation for broadband interference. Consider the wide operating temperature range for environments subject to thermal stress. Compare physical dimensions against PCB footprint constraints before integration.
Part Context
This part belongs to the ACM-V series, which focuses on miniaturized common mode filters. The series utilizes proprietary core materials to achieve high performance in small packages. It serves as a solution for electromagnetic interference suppression in space-constrained electronic designs requiring robust current ratings.
Replacement Considerations
Consult official TDK cross-reference lists for verified substitutes. Generic equivalents may not match the specific magnetic core geometry or impedance profile. Verify that any replacement maintains the same current rating and dimensional constraints for direct board compatibility.
FAQ
What is the maximum operating temperature for this component?
The maximum operating temperature is +125°C.
Does this component use a wirewound construction?
Yes, the ACM55V-701-2PL-TL00 utilizes a wirewound construction technique.
