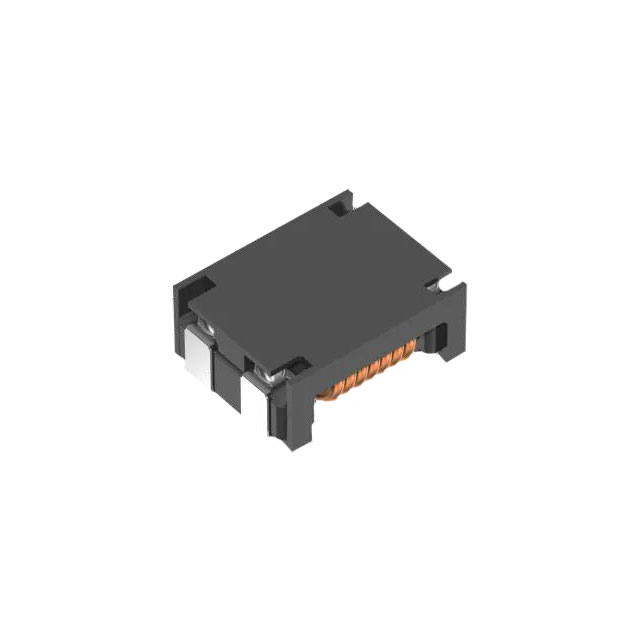

ACM90V-152-2PL-TL00

$1.33

Description：CMC 3.6A 2LN 1.5KOHM SMD AECQ200
Series：ACM-V
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:20272f30d60a Category: Common Mode Chokes Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 3.6A 2LN 1.5KOHM SMD AECQ200
Series：ACM-V
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：3.6A
DC Resistance (DCR) (Max)：16mOhm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.354" L x 0.276" W (9.00mm x 7.00mm)
Height (Max)：0.177" (4.50mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：1.5 kOhms @ 100 MHz
Qualification：-
Grade：-

Download product information

ACM90V-152-2PL-TL00

Overview

The TDK ACM90V-152-2PL-TL00 is a surface-mount common mode filter designed for automotive applications. It features a 9.0mm x 7.0mm x 4.5mm package and complies with AEC-Q200 standards. The component provides an impedance of 1500 ohms at 100 MHz and supports a rated current of 3600 mA. Its maximum DC resistance is 0.016 ohms, ensuring low power loss in high-current circuits.

Feature Summary

AEC-Q200 qualified for automotive reliability
High current handling capability
Compact surface-mount design

Applications

Automotive power line filtering
High-speed differential signal line protection
General signal line noise suppression

Procurement Notes

Verify the specific suffix TL00 to confirm tape and reel packaging quantity. Ensure the part number matches the exact impedance and current ratings required for your circuit design. Cross-reference with official TDK documentation to confirm availability and lead times through authorized distributors.

Selection Notes

Select this component when high current capacity and automotive-grade reliability are required. The 1500 ohm impedance offers effective noise suppression for sensitive lines. Consider the physical dimensions and mounting style for PCB layout constraints.

Part Context

Part of the TDK ACM-V series, this filter is engineered for robust performance in demanding environments. The ACM90V series specifically targets automotive and industrial applications requiring durable EMC solutions.

Replacement Considerations

Check for direct substitutes within the ACM90V series with similar impedance and current ratings. Verify pin compatibility and thermal characteristics before substituting.
