Product Detailed Parameters
- Description：CMC 8A 2LN 700 OHM SURFACE MOUNT
- Series：ACM-V
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：8A
- DC Resistance (DCR) (Max)：10mOhm
- Voltage Rating - DC：80V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.354" L x 0.276" W (9.00mm x 7.00mm)
- Height (Max)：0.177" (4.50mm)
- Package / Case：Horizontal, 4 J-Lead
- Inductance @ Frequency：-
- Impedance @ Frequency：700 Ohms @ 100 MHz
- Qualification：AEC-Q200
- Grade：Automotive
Download product information
Overview

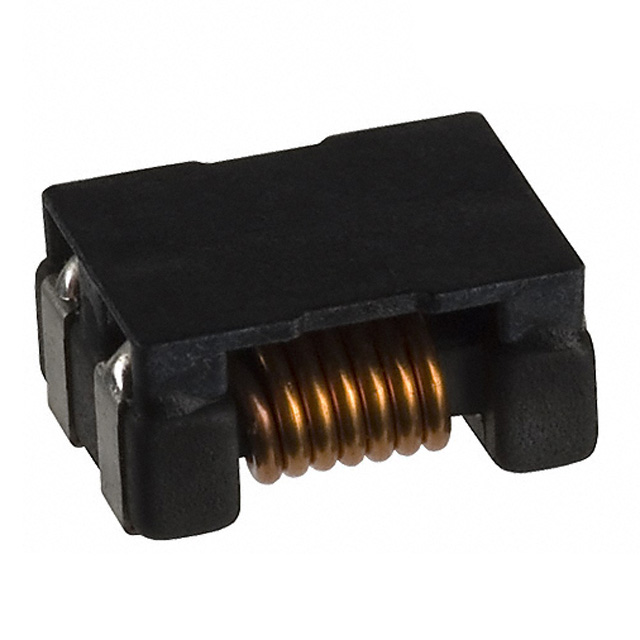

The TDK ACM90V-701-2PL-TL00 is a surface-mount common mode filter designed for automotive power lines. It features an inductance of 6.9 μH and a rated DC current of 5 A, with a maximum DC resistance of 10 mΩ. The component operates within a temperature range of -40°C to 125°C and is certified to the AEC-Q200 standard. Its physical dimensions are 9 mm in length, 7 mm in width, and 4.5 mm in height.
Feature Summary
- Utilizes exclusive square type closed magnetic cores to achieve miniaturization while maintaining performance characteristics.
- Shielded design provides improved noise reduction capabilities.
Applications
- Automotive power line filtering
- 48V power system applications
Procurement Notes
Verify the specific part number suffix against official TDK documentation to confirm exact electrical ratings and packaging details. Ensure compatibility with automotive standards such as AEC-Q200 if required by the application. Cross-reference datasheets from authorized distributors to validate current specifications before procurement.
Selection Notes
Select this component for applications requiring high current handling and compact form factors in automotive environments. The AEC-Q200 certification ensures reliability under automotive operating conditions. Consider the 5 A rated current and low DC resistance when designing power distribution networks.
Part Context
This component belongs to the ACM-V series of common mode chokes from TDK. The series is specifically engineered for automotive electronics, offering robust noise suppression in space-constrained designs. The ACM90V variant represents a specific size and performance tier within this broader product family.
Replacement Considerations
ACM9070-701-2PL-TL01
FAQ
What is the maximum operating temperature?
The maximum operating temperature is 125°C.
Is the component shielded?
Yes, the component features a shielded design for improved noise reduction.
