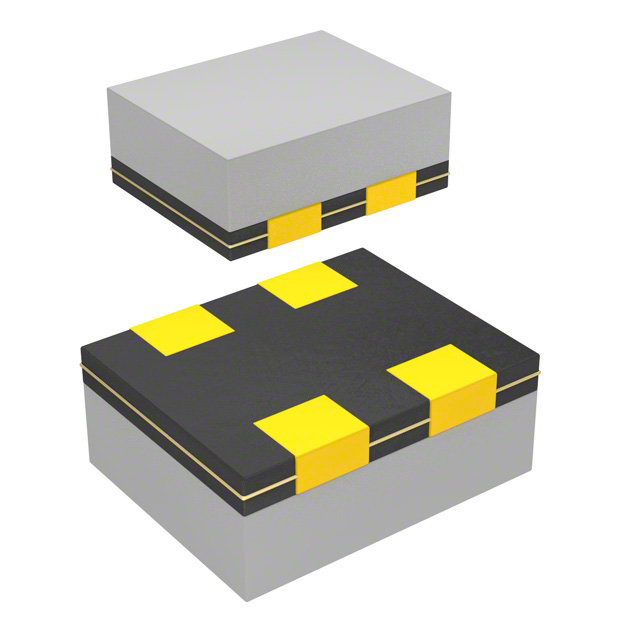

ACMF-04-900-T

$0.14

Description：CMC 100MA 2LN 90 OHM SMD
Series：ACMF-04
Mfr：Abracon LLC
Package：Tape & Reel (TR)

SKU:ebcd909299a2 Category: Common Mode Chokes Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 100MA 2LN 90 OHM SMD
Series：ACMF-04
Mfr：Abracon LLC
Package：Tape & Reel (TR)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：100mA
DC Resistance (DCR) (Max)：2.8Ohm (Typ)
Voltage Rating - DC：10V
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 150°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max)：0.026" (0.65mm)
Package / Case：0504 (1210 Metric), 4 Lead
Inductance @ Frequency：-
Impedance @ Frequency：90 Ohms @ 100 MHz
Qualification：-
Grade：-

Download product information

ACMF-04-900-T

Overview

The Abracon ACMF-04-900-T is a surface-mount thin film common mode filter designed for high-frequency noise suppression. It features a cutoff frequency of 5.0 GHz and a nominal impedance of 90 Ohms with a tolerance of ±20%. The component supports a maximum current rating of 100 mA and utilizes a two-line configuration suitable for differential signal lines. It is housed in a compact SMD package compliant with RoHS standards, ensuring environmental safety while maintaining reliable performance across various electronic applications requiring EMI mitigation.

Feature Summary

Thin film construction for consistent electrical characteristics
High cutoff frequency of 5.0 GHz for effective broadband filtering
Compact surface-mount design facilitating automated assembly

Applications

High-speed data line protection
EMI suppression in communication interfaces
Noise filtering for differential signal pairs

Procurement Notes

Verify the specific package dimensions and pinout configuration against the official Abracon datasheet prior to PCB layout finalization. Confirm that the 100 mA current rating aligns with the operational requirements of the target circuit to prevent thermal issues. Ensure compliance with RoHS directives if required by the end-product regulations. Cross-reference the impedance value at the operating frequency to validate filtering effectiveness.

Selection Notes

Select this component when differential signal integrity requires attenuation of common mode noise above 5.0 GHz. The 90 Ohm impedance matches typical transmission line characteristics for balanced lines. Consider the low current handling capability of 100 mA; it is unsuitable for power delivery lines. Evaluate space constraints as the SMD form factor offers a small footprint compared to through-hole alternatives.

Part Context

This part belongs to Abracon's ACMF series of thin film common mode filters. These components are engineered for applications demanding precise impedance control and high-frequency performance. The series provides a solution for mitigating electromagnetic interference in sensitive electronic circuits without significantly impacting the desired differential signal propagation.
