Product Detailed Parameters

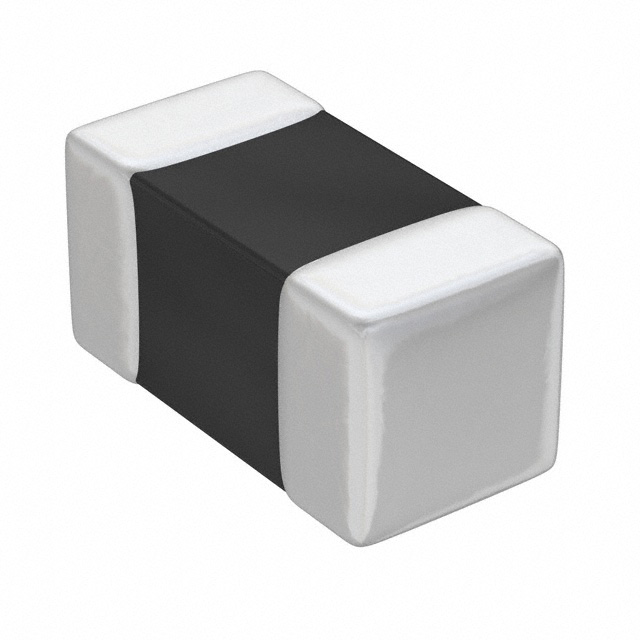

- Description：FERRITE BEAD 100 OHM 0603 1LN
- Series：ACML
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：-
- Number of Lines：1
- Impedance @ Frequency：100 Ohms @ 100 MHz
- Current Rating (Max)：200mA
- DC Resistance (DCR) (Max)：200mOhm
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Package / Case：0603 (1608 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.037" (0.95mm)
- Size / Dimension：0.063" L x 0.032" W (1.60mm x 0.80mm)
- Features：-
Download product information
Overview
The ACML-0603-101-T is a multilayer ferrite chip bead manufactured by Abracon LLC, designed for surface-mount technology (SMD/SMT) applications. It operates within a temperature range of -55°C to +125°C and features a 0603 (1608 metric) package with dimensions of 1.6 mm in length and 0.8 mm in width. The component provides an impedance of 100 Ohms at 100 MHz and supports a maximum DC current of 300 mA. Its maximum DC resistance is specified at 200 mOhms.
Feature Summary
- Multilayer ferrite construction for effective high-frequency noise suppression
- Surface-mount design compatible with standard PCB assembly processes
- Wide operating temperature range suitable for diverse environmental conditions
Applications
- High-speed data line filtering
- Clock signal noise attenuation
- Power supply rail decoupling
Procurement Notes
Verify the specific manufacturer part number against official Abracon documentation to ensure authenticity. Confirm that the component meets required RoHS compliance standards for your region. Check datasheet revisions for any updates to electrical characteristics or mechanical dimensions before finalizing procurement specifications.
Selection Notes
Select this component based on its 100 Ohm impedance at 100 MHz for targeted frequency noise reduction. Ensure the 300 mA current rating exceeds the maximum expected DC load on the circuit line. Verify that the 0603 footprint matches the PCB layout constraints and that the thermal performance aligns with the system's operating temperature requirements.
Part Context
This component belongs to the ACML series of multilayer ferrite chip beads from Abracon. These components are engineered to suppress electromagnetic interference (EMI) and radio frequency interference (RFI) in electronic circuits. The series offers various impedance values and current ratings to suit different filtering needs across consumer and industrial electronics.
Replacement Considerations
Consult official Abracon documentation for verified substitute part numbers. Cross-reference impedance, current rating, and package dimensions when evaluating alternatives.
