ACML-0603H-471-T

$0.03

Description：FERRITE BEAD 470 OHM 0603 1LN
Series：ACML
Mfr：Abracon LLC
Package：Tape & Reel (TR)

SKU:ab7b787324d9 Category: Ferrite Beads and Chips Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE BEAD 470 OHM 0603 1LN
Series：ACML
Mfr：Abracon LLC
Package：Tape & Reel (TR)
Filter Type：Power Line
Number of Lines：1
Impedance @ Frequency：470 Ohms @ 100 MHz
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：200mOhm
Ratings：-
Operating Temperature：-55°C ~ 125°C
Package / Case：0603 (1608 Metric)
Mounting Type：Surface Mount
Height (Max)：0.037" (0.95mm)
Size / Dimension：0.063" L x 0.031" W (1.60mm x 0.80mm)
Features：-

Download product information

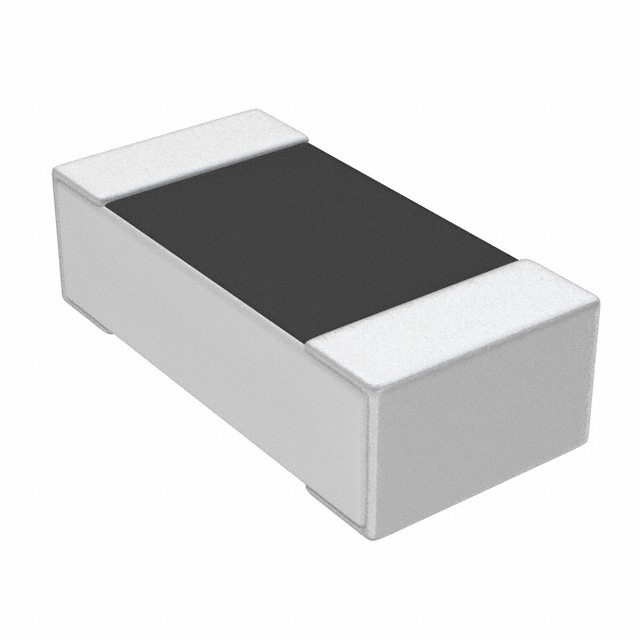

ACML-0603H-471-T

Overview

The ACML-0603H-471-T is a multilayer ferrite chip bead from the Abracon ACML series, designed for surface-mount assembly in the 0603 (1608 metric) package. It provides an impedance of 470 Ohms at a test frequency of 100 MHz. The component supports a maximum DC current of 25 mA and exhibits a maximum DC resistance of 1.4 Ohms. It operates within a temperature range of -55°C to +125°C and features a single-line configuration.

Feature Summary

Multilayer construction for compact noise suppression
High impedance performance at 100 MHz
Surface-mount compatibility

Applications

Power supply line filtering
Digital circuit noise suppression
Signal integrity enhancement

Procurement Notes

Verify the specific manufacturer part number against official Abracon documentation to confirm electrical characteristics and physical dimensions. Ensure the ordering suffix matches the required packaging format. Cross-reference RoHS compliance status with the latest datasheet version before finalizing procurement specifications.

Selection Notes

Select this component based on the required 0603 footprint and the specific impedance value needed for the target frequency. Evaluate the maximum DC current rating to ensure it meets the circuit's operational requirements without saturation. Confirm thermal stability needs align with the specified operating temperature range.

Part Context

This component belongs to the Abracon ACML family of ferrite beads, which are engineered for high-frequency noise attenuation in electronic circuits. The series offers various impedance values and package sizes to accommodate different design constraints and signal processing requirements.
