ACML-0603H-501-T

Overview

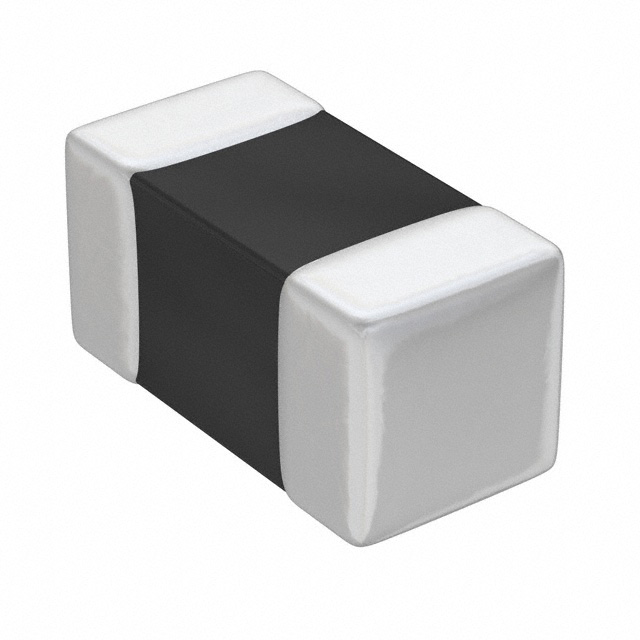

The ACML-0603H-501-T is a single-line ferrite chip bead from the Abracon ACML-H series, housed in a 0603 (1608 metric) surface-mount package. It provides an impedance of 500 Ohms at 100 MHz with a tolerance of 25%. The component supports a maximum DC current of 800 mA and features a maximum DC resistance of 280 mOhms. It operates within a temperature range of -55°C to +125°C.

Feature Summary

• Single-channel noise suppression design for signal integrity management
• High current handling capability suitable for power line filtering applications
• Compliant with RoHS standards and conflict mineral regulations

Applications

• General electronic equipment noise filtering
• Communication device signal line protection
• Portable electronics EMI suppression

Procurement Notes

Verify that the specific order matches the ACML-H series designation and 0603 package dimensions. Confirm compliance requirements including RoHS and REACH SVHC status as documented by the manufacturer. Ensure the supplier provides valid datasheets confirming the 500 Ohm impedance at 100 MHz and 800 mA current rating before finalizing procurement.

Selection Notes

Select this component when high current capacity is required alongside significant impedance in a compact footprint. The 0603 size offers space efficiency compared to larger packages while maintaining robust performance. Consider the 280 mOhm DC resistance impact on voltage drop in low-voltage circuits during selection.

Part Context

This part belongs to the ACML-H series of ferrite beads designed for high-current applications. It complements other Abracon ferrite products by offering enhanced current ratings within standard industry footprints. The series targets modern electronics requiring effective EMI control without sacrificing board real estate or power delivery capabilities.

Replacement Considerations

Direct substitutes must match the 0603 package, 500 Ohm impedance at 100 MHz, and minimum 800 mA current rating. Verify equivalent DC resistance and temperature range specifications to ensure functional compatibility in existing designs.
