Product Detailed Parameters

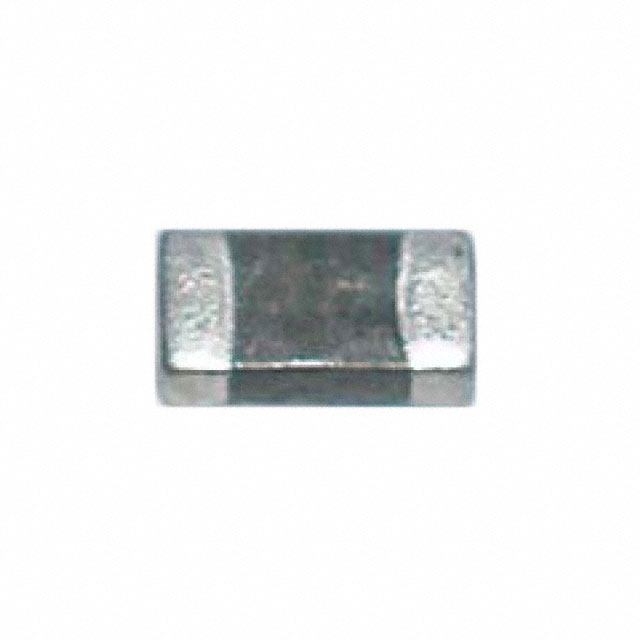

- Description：FERRITE BEAD 600 OHM 1206 1LN
- Series：ACML-1206
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：-
- Number of Lines：1
- Impedance @ Frequency：600 Ohms @ 100 MHz
- Current Rating (Max)：600mA
- DC Resistance (DCR) (Max)：300mOhm
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Package / Case：1206 (3216 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.047" (1.20mm)
- Size / Dimension：0.126" L x 0.063" W (3.20mm x 1.60mm)
- Features：-
Download product information
Overview
The ACML-1206-600-T is a surface-mount ferrite chip bead from the Abracon ACML series, designed for electromagnetic interference (EMI) suppression in electronic circuits. It features a 1206 package dimension of 3.20mm x 1.60mm with a maximum height of 1.20mm. The component provides an impedance of 600 ohms at 100 MHz and supports a maximum DC current of 0.6A. Its maximum DC resistance is specified at 300 milliohms, with a tolerance of 25%. It operates within a temperature range of -45°C to +125°C.
Feature Summary
- Provides high impedance attenuation for EMI noise filtering at 100 MHz
- Supports continuous DC currents up to 0.6A without saturation
- Constructed with low DC resistance to minimize signal loss
- Compliant with RoHS standards for restricted hazardous substances
Applications
- Data line protection in portable communication devices
- Power supply filtering in consumer electronics
- Signal integrity enhancement in industrial control systems
Procurement Notes
Verify the specific impedance value and current rating against the official Abracon datasheet before integration. Confirm that the 1206 footprint matches the target PCB layout dimensions. Ensure the operating temperature range meets the environmental requirements of the final assembly. Check for tape and reel packaging options if automated placement is required.
Selection Notes
Select this component when a 1206 form factor is required for space-constrained designs. Choose based on the need for 600 ohms impedance at 100 MHz for effective high-frequency noise suppression. Consider the 0.6A current handling capability relative to the circuit's power lines. Evaluate the 300 milliohm DC resistance impact on voltage drop in sensitive applications.
Part Context
This part belongs to the Abracon ACML series of multi-layer chip beads. These components are engineered for surface-mount technology (SMT) applications. The series offers various impedance values and package sizes to suit different filtering needs. The ACML-1206-600-T specifically addresses the demand for compact, high-performance EMI suppression in modern electronic assemblies.
Replacement Considerations
Consult the official Abracon documentation for direct cross-references. Verify that any substitute part maintains identical impedance characteristics at 100 MHz and compatible current ratings. Ensure physical dimensions match the existing PCB footprint to avoid rework.
