Product Detailed Parameters
- Description：CMC 8A 2LN 800 OHM SMD
- Series：ACMP-1264
- Mfr：Abracon LLC
- Package：Tape & Reel (TR)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：8A
- DC Resistance (DCR) (Max)：8mOhm
- Voltage Rating - DC：125V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.492" L x 0.425" W (12.50mm x 10.80mm)
- Height (Max)：0.252" (6.40mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：800 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

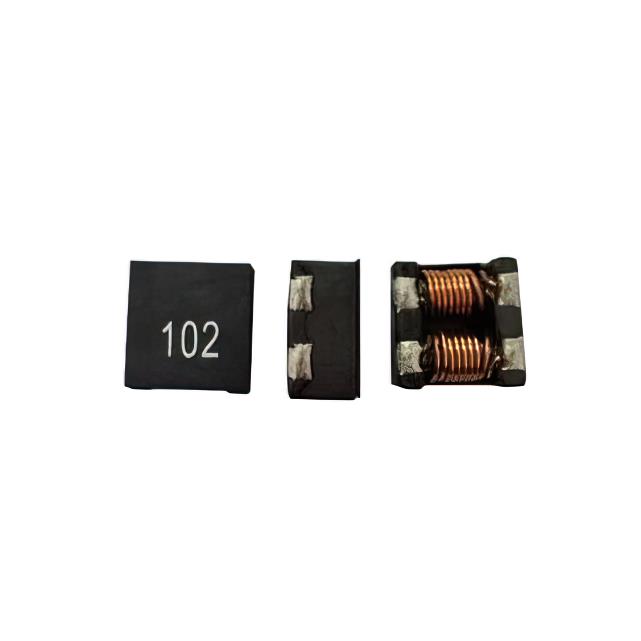

The ACMP-1264-801-T is a two-line surface-mount common mode filter choke manufactured by Abracon LLC. It features an impedance of 800 ohms at 100 MHz and supports a maximum DC current rating of 8 amperes. The component exhibits a maximum DC resistance of 8 milliohms. Designed for PCB mounting, it operates within a temperature range of -40°C to +125°C.
Feature Summary
- Provides effective common mode noise suppression in high-current applications
- Supports dual-line configurations for balanced signal integrity
- Engineered for surface-mount assembly on printed circuit boards
Applications
- High-speed data line filtering
- Power supply input stages
- Industrial control systems
Procurement Notes
Verify the specific impedance tolerance and saturation current characteristics against the official Abracon datasheet before finalizing design integration. Confirm that the package dimensions align with the target PCB footprint. Ensure thermal management strategies account for the 8A continuous current rating under worst-case operating conditions.
Selection Notes
Select this component when high current handling capability is required alongside significant common mode noise attenuation. The low DC resistance minimizes power loss in the main current path. Evaluate the 800-ohm impedance specification against the target noise frequency spectrum to ensure adequate filtering performance for the specific application environment.
Part Context
This part belongs to the ACMP series of common mode chokes from Abracon. It is designed for robust performance in demanding electronic environments. The series offers various impedance and current ratings to suit different power and signal integrity requirements across industrial and consumer electronics sectors.
Replacement Considerations
Consult the manufacturer's cross-reference documentation for verified substitute part numbers. Ensure any replacement maintains identical impedance, current rating, and physical dimensions to guarantee compatibility with existing board layouts and electrical specifications.
