ACMP-3225-102-T

Overview

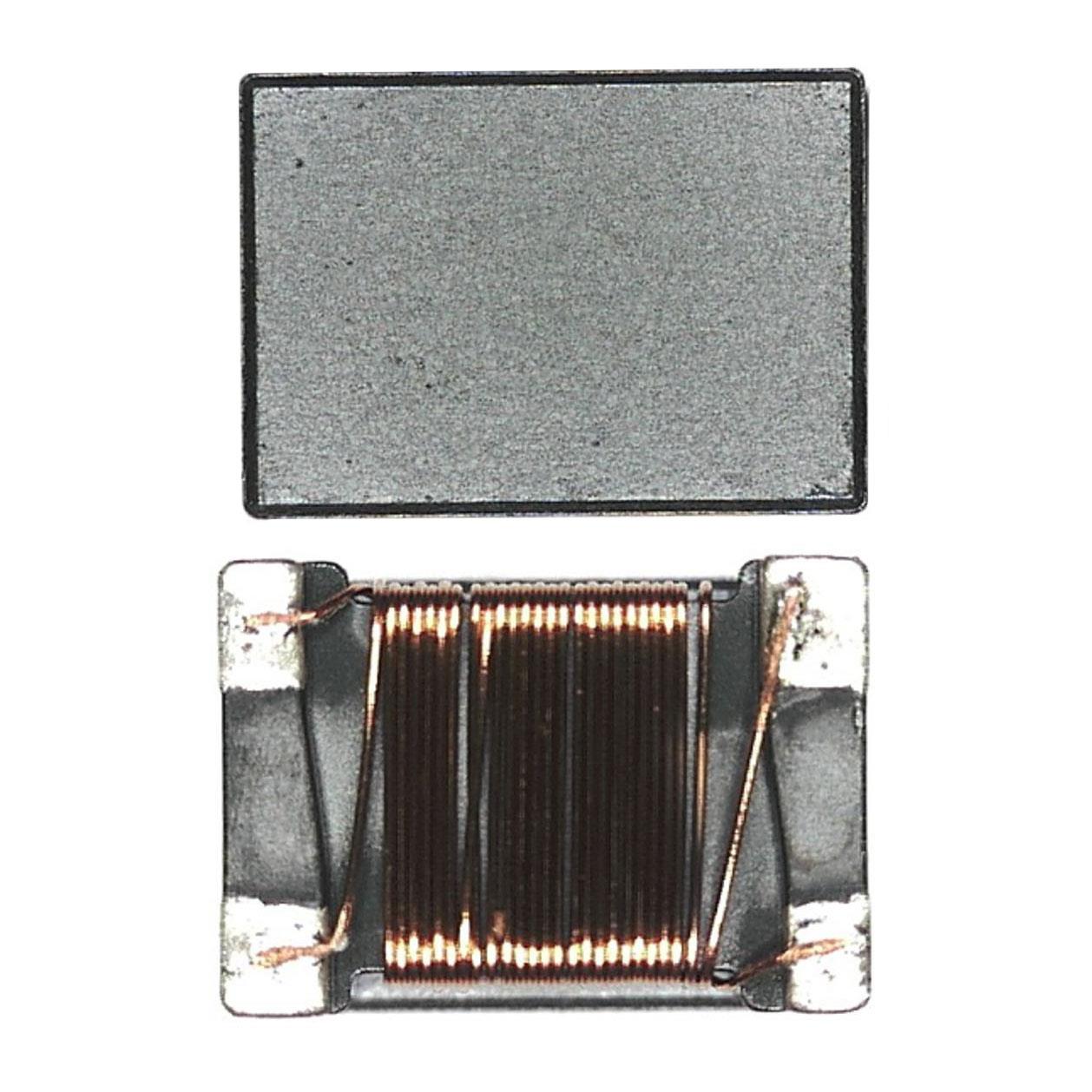

The ACMP-3225-102-T is a two-line surface-mount common mode choke manufactured by Abracon LLC. It provides an impedance of 1 kOhms at 100 MHz and supports a maximum DC current of 400 mA. The component features a low maximum DC resistance of 300 mOhms and operates within a temperature range of -40°C to +125°C. Rated for 50V DC, it utilizes a compact SMD package suitable for automated PCB assembly.

Feature Summary

• Provides effective common mode noise suppression for differential signal lines
• Supports high-density surface mount integration with compact footprint
• Maintains stable performance across extended industrial temperature ranges

Applications

• High-speed data interface filtering
• USB port noise suppression
• HDMI signal line protection
• Ethernet cable filtering

Procurement Notes

Verify the specific manufacturer part number against official Abracon documentation to ensure authenticity. Confirm that the required impedance value and current rating align with the target circuit design specifications before finalizing procurement orders.

Selection Notes

Select this component when designing circuits requiring common mode noise reduction for high-speed digital signals. Ensure the selected package size fits the available board space and that the thermal management capabilities accommodate the operating environment requirements.

Part Context

This component belongs to Abracon's ACMP series of common mode chokes. These components are engineered for signal integrity enhancement in electronic systems. The series offers various impedance and current ratings to suit different application needs.

Replacement Considerations

Consult official Abracon documentation for verified substitute part numbers. Ensure any replacement matches the original impedance, current rating, and physical dimensions to maintain circuit compatibility.
