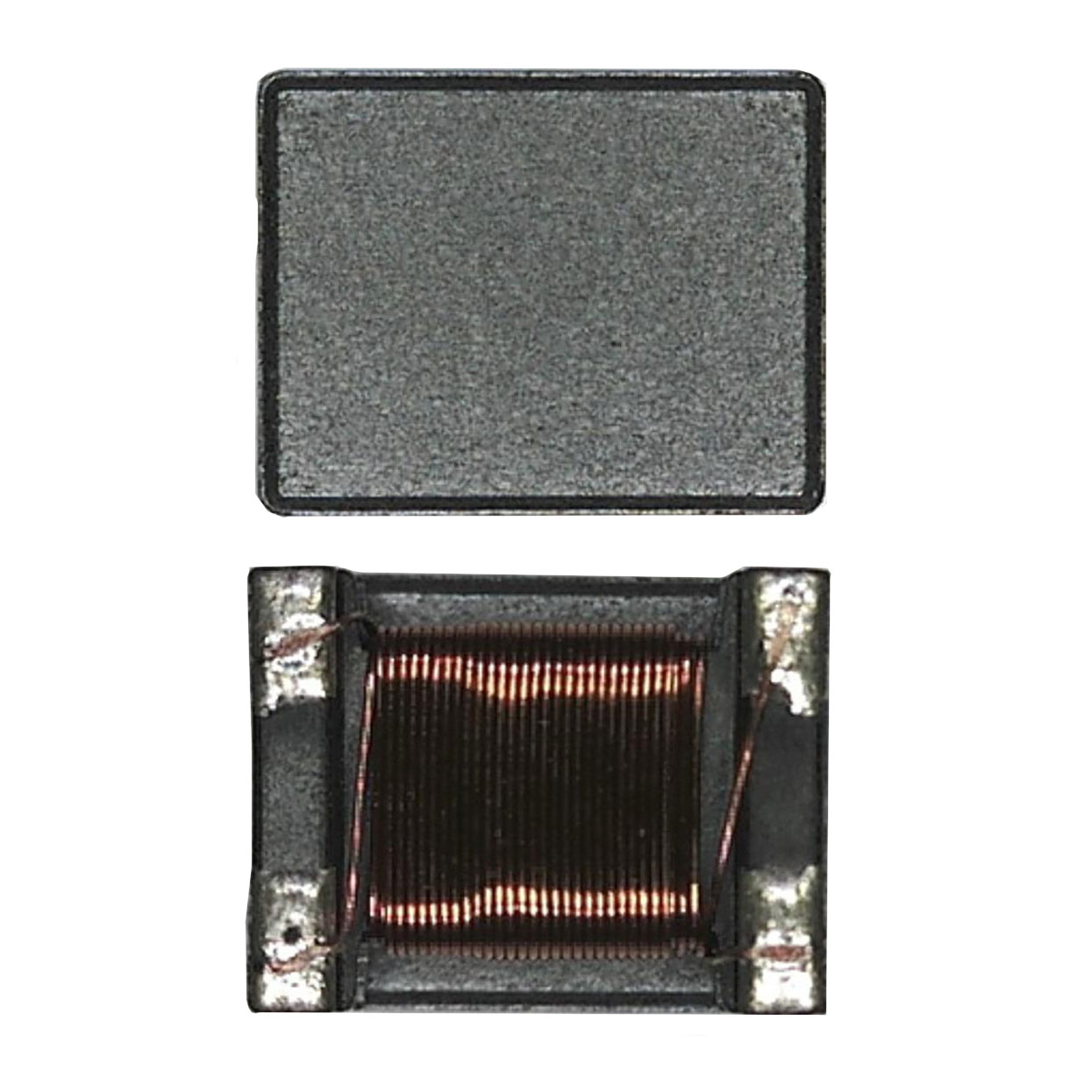

ACMP-4528-900-T

$0.48

Description：CMC 3A 2LN 90 OHM SMD
Series：ACMP-4528
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:0298dfde248f Category: Common Mode Chokes Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 3A 2LN 90 OHM SMD
Series：ACMP-4528
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：3A
DC Resistance (DCR) (Max)：50mOhm
Voltage Rating - DC：50V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max)：0.118" (3.00mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：90 Ohms @ 100 MHz
Qualification：-
Grade：-

Download product information

ACMP-4528-900-T

Overview

The ACMP-4528-900-T is a surface-mount common mode filter choke from Abracon LLC, designed for power line noise suppression. It features a ferrite core and operates within a temperature range of -40°C to +125°C. The component has a maximum DC current rating of 3A and a maximum DC resistance of 50 milliohms. Its impedance is specified at 90 ohms. The device utilizes a four-pin SMD package with dimensions of 4.5mm length, 2.8mm width, and 8.0mm height.

Feature Summary

Utilizes a ferrite core material for effective high-frequency noise attenuation in power circuits.
Designed for surface-mount technology (SMD) integration onto printed circuit boards.
Provides common mode filtering capability to suppress electromagnetic interference on dual-line configurations.

Applications

Power supply input filtering
DC-DC converter noise suppression
General electronic equipment EMI reduction

Procurement Notes

Verify the specific impedance value and current rating against the official Abracon datasheet prior to procurement. Confirm that the 4-pin SMD footprint matches the target PCB layout. Ensure the operating temperature range meets the environmental requirements of the final assembly. Check for RoHS compliance status if required by regulatory standards.

Selection Notes

Select this component when a 90-ohm impedance at the target frequency is required for common mode noise rejection. The 3A current rating must accommodate the peak load currents without saturation. Consider the physical dimensions of the 4.5x2.8x8.0mm package for space-constrained designs. Evaluate the thermal performance given the 50-milliohm DC resistance under continuous load conditions.

Part Context

This part belongs to the ACMP series of common mode chokes manufactured by Abracon LLC. These components are engineered for compact power electronics applications requiring reliable EMI suppression. The series offers various impedance and current ratings to suit different power line filtering needs across consumer and industrial electronics.

Replacement Considerations

Cross-reference with other Abracon ACMP series parts or equivalent ferrite chokes from manufacturers like TDK or Murata. Ensure substitute components match the 90-ohm impedance, 3A current rating, and 4-pin SMD footprint. Verify that alternative parts meet the same temperature and RoHS specifications.
