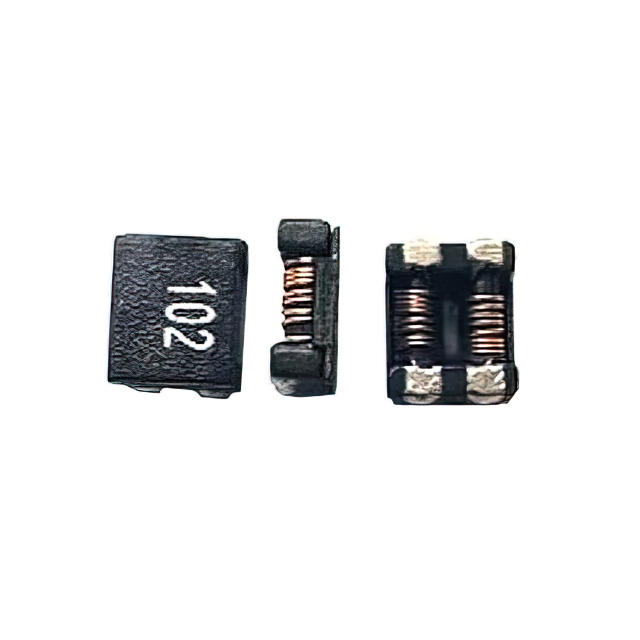

ACMP-4724-102-T

$0.47

Description：CMC 2.1A 2LN 1 KOHM SMD
Series：ACMP-4724
Mfr：Abracon LLC
Package：Tape & Reel (TR)

SKU:76ef420f5293 Category: Common Mode Chokes Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 2.1A 2LN 1 KOHM SMD
Series：ACMP-4724
Mfr：Abracon LLC
Package：Tape & Reel (TR)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2.1A
DC Resistance (DCR) (Max)：68mOhm
Voltage Rating - DC：50V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.205" L x 0.177" W (5.20mm x 4.50mm)
Height (Max)：0.094" (2.40mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：1 kOhms @ 100 MHz
Qualification：-
Grade：-

Download product information

ACMP-4724-102-T

Overview

The ACMP-4724-102-T is a surface-mount common mode choke from Abracon LLC, designed for power line noise suppression. It features two lines with an impedance of 1 kOhms at 100 MHz. The component supports a maximum DC current of 2.1 A and has a maximum DC resistance of 68 mOhms. It operates within a temperature range of -40°C to +125°C and utilizes a ferrite core material.

Feature Summary

Provides common mode noise filtering for dual-line power circuits
Utilizes ferrite core construction for effective high-frequency attenuation
Designed for surface mount PCB integration

Applications

Power supply input filtering
Battery charger circuit protection
Portable electronic device EMI suppression

Procurement Notes

Verify the manufacturer part number ACMP-4724-102-T against official Abracon documentation to confirm specifications. Ensure compatibility with your board layout and thermal requirements. Check for RoHS compliance status in the latest datasheet. Confirm package dimensions match your footprint design before procurement.

Selection Notes

Select this component when dual-line common mode noise reduction is required in compact power applications. The 2.1 A current rating suits moderate power levels. Verify that the 1 kOhm impedance meets your specific frequency suppression needs. Ensure the SMD package fits your assembly constraints.

Part Context

This component belongs to Abracon's ACMP series of common mode chokes. These devices are engineered for electromagnetic interference suppression in consumer electronics and industrial equipment. The series offers various impedance and current ratings to suit different power line configurations.

Replacement Considerations

ACMP-5025-102-T is a similar Abracon common mode choke with comparable impedance but different physical dimensions and current ratings. Verify pinout and mechanical fit before substitution.
