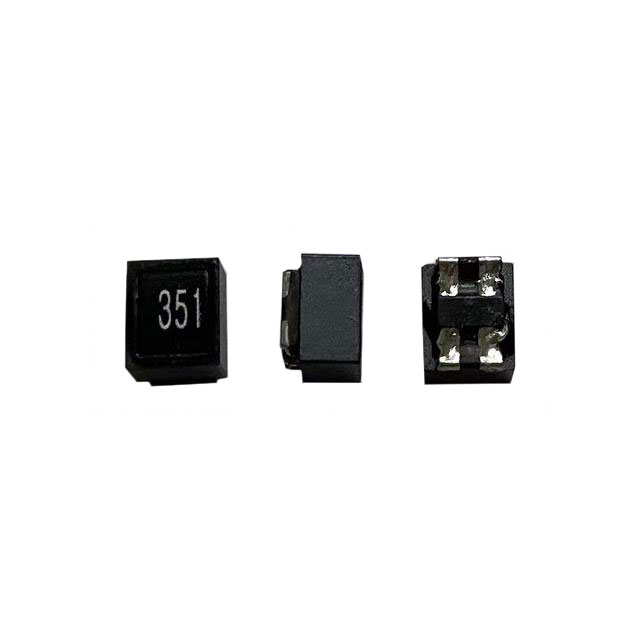

ACMP-5045-501-T

$0.50

Description：CMC 1.8A 2LN 500 OHM SMD
Series：ACMP-5045
Mfr：Abracon LLC
Package：Tape & Reel (TR)

SKU:0c3135313d50 Category: Common Mode Chokes Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 1.8A 2LN 500 OHM SMD
Series：ACMP-5045
Mfr：Abracon LLC
Package：Tape & Reel (TR)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1.8A
DC Resistance (DCR) (Max)：50mOhm
Voltage Rating - DC：50V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.197" L x 0.189" W (5.00mm x 4.80mm)
Height (Max)：0.177" (4.50mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：500 Ohms @ 100 MHz
Qualification：-
Grade：-

Download product information

ACMP-5045-501-T

Overview

The ACMP-5045-501-T is a surface-mount common mode choke from the Abracon ACMP-5045 series. It features a ferrite core and wirewound construction designed for power line filtering applications. The component provides an impedance of 500 Ohms at 100 MHz with a rated current capacity of 1.8 Amperes. It has a low DC resistance of 50 milliohms and operates within a temperature range of -40°C to +125°C. The device utilizes a four-pin SMD package for PCB mounting.

Feature Summary

Dual-line configuration for effective noise suppression on paired conductors
Ferrite core material optimized for high-frequency interference attenuation
Surface mount design facilitates automated assembly processes

Applications

Power supply input filtering
Data bus protection in electronic circuits
EMI suppression in consumer electronics

Procurement Notes

Verify the specific manufacturer part number against official Abracon documentation to ensure authenticity. Confirm that the ordering suffix matches the required tape and reel packaging specifications. Check RoHS compliance status and moisture sensitivity level requirements prior to integration into the manufacturing workflow.

Selection Notes

Select this component when dual-line common mode noise reduction is required at 100 MHz. Ensure the circuit current does not exceed the 1.8 A rating to prevent saturation. Verify that the physical footprint accommodates the standard SMD package dimensions provided in the datasheet.

Part Context

This component belongs to the ACMP-5045 series of common mode chokes manufactured by Abracon LLC. The series offers various impedance and current ratings tailored for different power and signal integrity needs. These components are widely used in industries requiring reliable electromagnetic interference mitigation.
