ACMP-9050-272-T

Overview

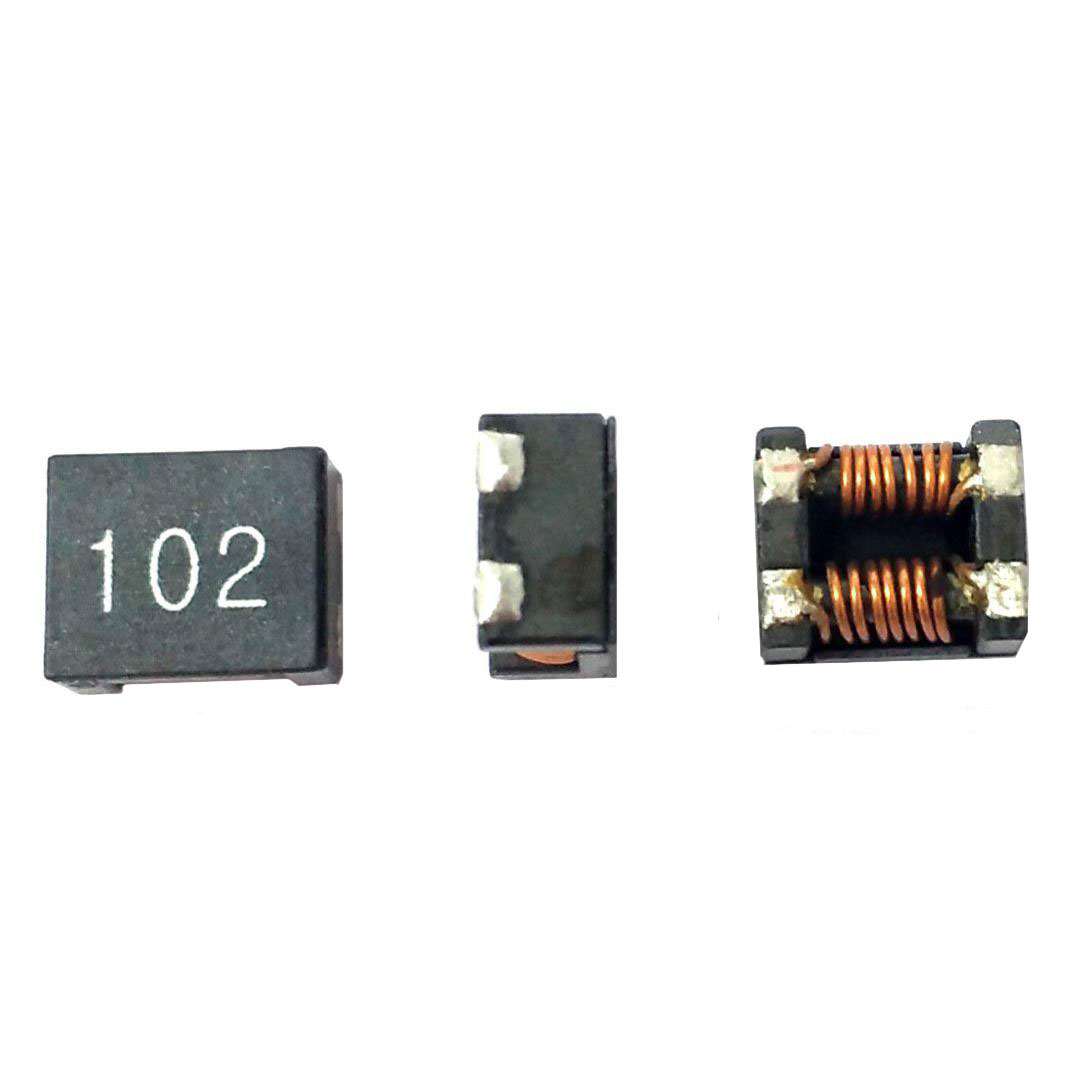

The ACMP-9050-272-T is a surface-mount common mode choke from the Abracon ACMP-Q9050 series. It features a ferrite core and provides an impedance of 2.7 kOhms at 100 MHz. The component supports a maximum DC current of 2.5 A with a maximum DC resistance of 65 mOhms. It operates within a temperature range of -40°C to +125°C. Physical dimensions are 9 mm in length, 7 mm in width, and 5 mm in height.

Feature Summary

• Dual-line surface mount configuration for effective noise suppression
• Ferrite core construction for high-frequency interference filtering
• Robust thermal performance across extended industrial temperature ranges

Applications

• Power line noise filtering in electronic circuits
• EMI suppression in data transmission interfaces
• Common mode noise reduction in power supply inputs

Procurement Notes

Verify the specific impedance value and current rating against the official Abracon datasheet before integration. Confirm package dimensions match PCB footprint requirements. Ensure RoHS compliance documentation is available for regulatory adherence. Check for any recent revisions to the part number suffix that may affect electrical characteristics or pinout compatibility.

Selection Notes

Select this component when dual-line filtering is required for signals carrying up to 2.5 A. The 2.7 kOhm impedance at 100 MHz targets specific high-frequency noise profiles. Consider the 65 mOhms DCR for voltage drop calculations in low-voltage applications. The 9x7x5 mm footprint dictates board space allocation compared to smaller series variants.

Part Context

This part belongs to the Abracon ACMP-Q9050 series of common mode chokes. It shares the physical housing style with other variants in the family but differs in magnetic material tuning and current handling capabilities. The series is designed for surface mount assembly processes, offering automated placement compatibility for manufacturing efficiency.

Replacement Considerations

Direct substitutes include ACMP-9050-152-T and ACMP-9050-332-T from the same manufacturer. Verify impedance curves and saturation currents when cross-referencing these alternatives to ensure circuit stability is maintained under identical operating conditions.
