ACMP-Q1260-102-T

$2.01

Description：CMC 7A 2LN 1 KOHM SMD AEC-Q200
Series：ACMP-Q1260
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:19678541f101 Category: Common Mode Chokes Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 7A 2LN 1 KOHM SMD AEC-Q200
Series：ACMP-Q1260
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：7A
DC Resistance (DCR) (Max)：8mOhm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.472" L x 0.433" W (12.00mm x 11.00mm)
Height (Max)：0.236" (6.00mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：1 kOhms @ 100 MHz
Qualification：-
Grade：-

Download product information

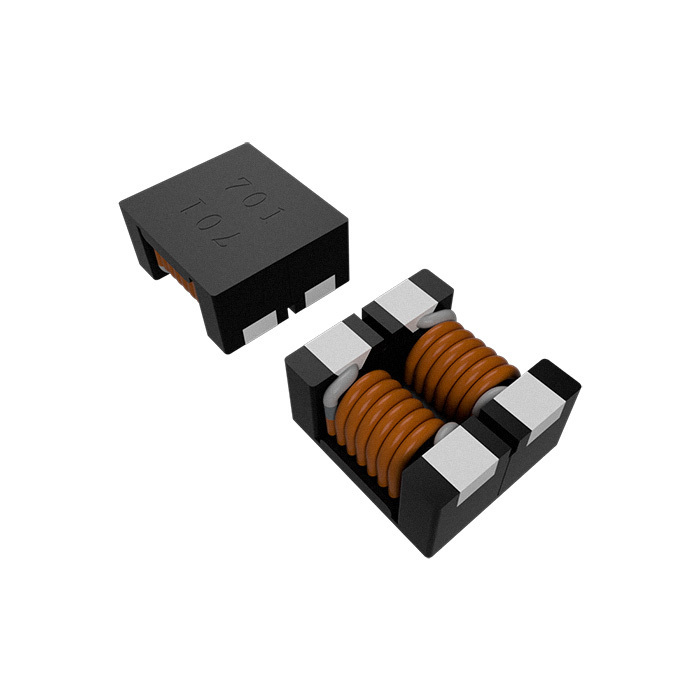

ACMP-Q1260-102-T

Overview

The ACMP-Q1260-102-T is a surface-mount common mode choke from the Abracon ACMP-Q1260 series. It features an impedance of 1000 ohms and supports a maximum DC current of 7 amperes. The component has a maximum DC resistance of 8 milliohms and operates within a temperature range of -40°C to +125°C. It is AEC-Q200 Grade 1 compliant, suitable for automotive applications.

Feature Summary

AEC-Q200 Grade 1 compliance for automotive reliability
High current handling capability up to 7 amperes
Low DC resistance for efficient power transmission
PPAP ready and supported for manufacturing integration

Applications

Automotive electronic circuits requiring EMI suppression
Data line protection in vehicle infotainment systems
Power supply filtering in automotive control units

Procurement Notes

Verify the specific datasheet revision and AEC-Q200 certification status directly with Abracon or authorized distributors. Confirm that the 7A current rating aligns with your system's peak load requirements. Ensure the SMD package dimensions fit your PCB layout constraints before finalizing procurement.

Selection Notes

Select this component when high current capacity and automotive-grade reliability are required. The low DC resistance minimizes voltage drop across the filter. Consider the 1000 ohm impedance for effective noise attenuation in the target frequency range. Verify compatibility with reflow soldering profiles specified in the official documentation.

Part Context

This part belongs to the ACMP-Q1260 series of common mode chokes designed by Abracon. The series is engineered for robust performance in demanding environments. Components in this family typically offer consistent impedance characteristics and thermal stability. The Q1260 designation indicates specific physical and electrical parameters distinct from other Abracon choke variants.

Replacement Considerations

Check for direct substitutes within the ACMP-Q1260 series with matching impedance and current ratings. Verify cross-compatibility with other AEC-Q200 certified common mode chokes if sourcing alternatives. Ensure pinout and footprint dimensions remain identical to avoid PCB redesign.
