ACMP-Q7040-700-T

$0.70

Description：CMC 15A 2LN 70 OHM SMD AEC-Q200
Series：ACMP-Q7040
Mfr：Abracon LLC
Package：Tape & Reel (TR)

SKU:5ed9c9f8022d Category: Common Mode Chokes Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 15A 2LN 70 OHM SMD AEC-Q200
Series：ACMP-Q7040
Mfr：Abracon LLC
Package：Tape & Reel (TR)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：15A
DC Resistance (DCR) (Max)：5mOhm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.276" L x 0.236" W (7.00mm x 6.00mm)
Height (Max)：0.150" (3.80mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：70 Ohms @ 100 MHz
Qualification：-
Grade：-

Download product information

ACMP-Q7040-700-T

Overview

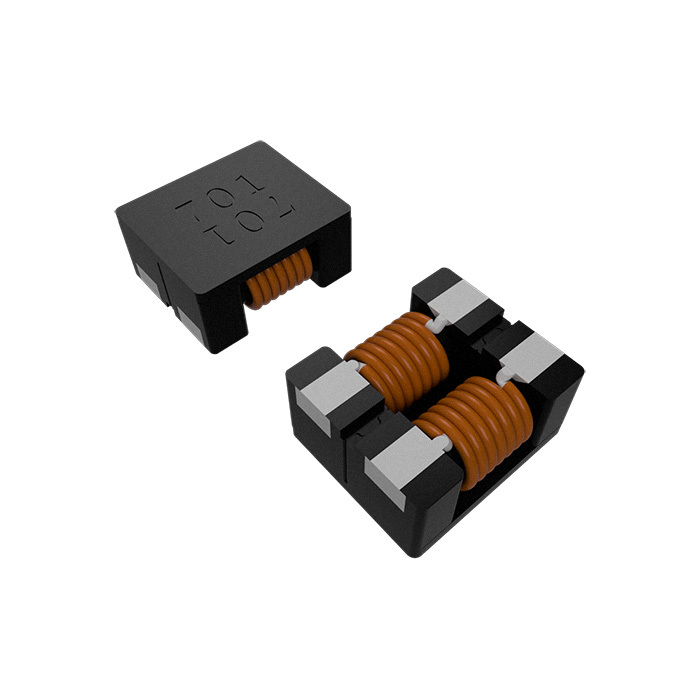

The ACMP-Q7040-700-T is a common mode filter choke from the Abracon ACMP-Q series, designed for automotive power applications. It features a two-line surface-mount configuration with an impedance of 70 ohms and a maximum DC current rating of 15 amperes. The component operates within a temperature range of -40°C to +125°C, including self-heating effects. It is AEC-Q200 qualified and RoHS compliant.

Feature Summary

High suppression of asymmetric interferences in low-frequency ranges
Compact design suitable for space-constrained automotive power circuits
AEC-Q200 qualification for automotive reliability standards

Applications

Automotive power line filtering
Common mode noise suppression in vehicle electronics
Low-frequency interference mitigation in power systems

Procurement Notes

Verify the specific suffix 'T' indicates tape and reel packaging when ordering. Confirm AEC-Q200 compliance requirements match your automotive project specifications. Ensure PCB layout accommodates the SMD footprint dimensions. Check that the 15A current rating meets the circuit's peak load demands without exceeding thermal limits.

Selection Notes

Select this component for automotive applications requiring robust common mode noise rejection at low frequencies. The 70-ohm impedance provides effective attenuation for asymmetric interference. The 15A current capacity supports high-power automotive circuits. Verify compatibility with surface-mount assembly processes and operating temperature ranges up to 125°C.

Part Context

This part belongs to the ACMP-Q series of automotive power common mode chokes by Abracon. These components are engineered for harsh automotive environments, offering reliable performance under varying thermal conditions. The series emphasizes compact form factors and high current handling capabilities for modern vehicle electrical architectures.

Replacement Considerations

Consult official Abracon documentation for verified cross-references. Ensure any substitute maintains AEC-Q200 qualification, identical impedance (70 ohms), and current rating (15A). Verify package compatibility and thermal characteristics before implementation.
