Product Detailed Parameters
- Description：CMC 5A 2LN 1 KOHM SMD AEC-Q200
- Series：ACMP-Q9050
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：5A
- DC Resistance (DCR) (Max)：10mOhm
- Voltage Rating - DC：80V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.354" L x 0.276" W (9.00mm x 7.00mm)
- Height (Max)：0.177" (4.50mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：1 kOhms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

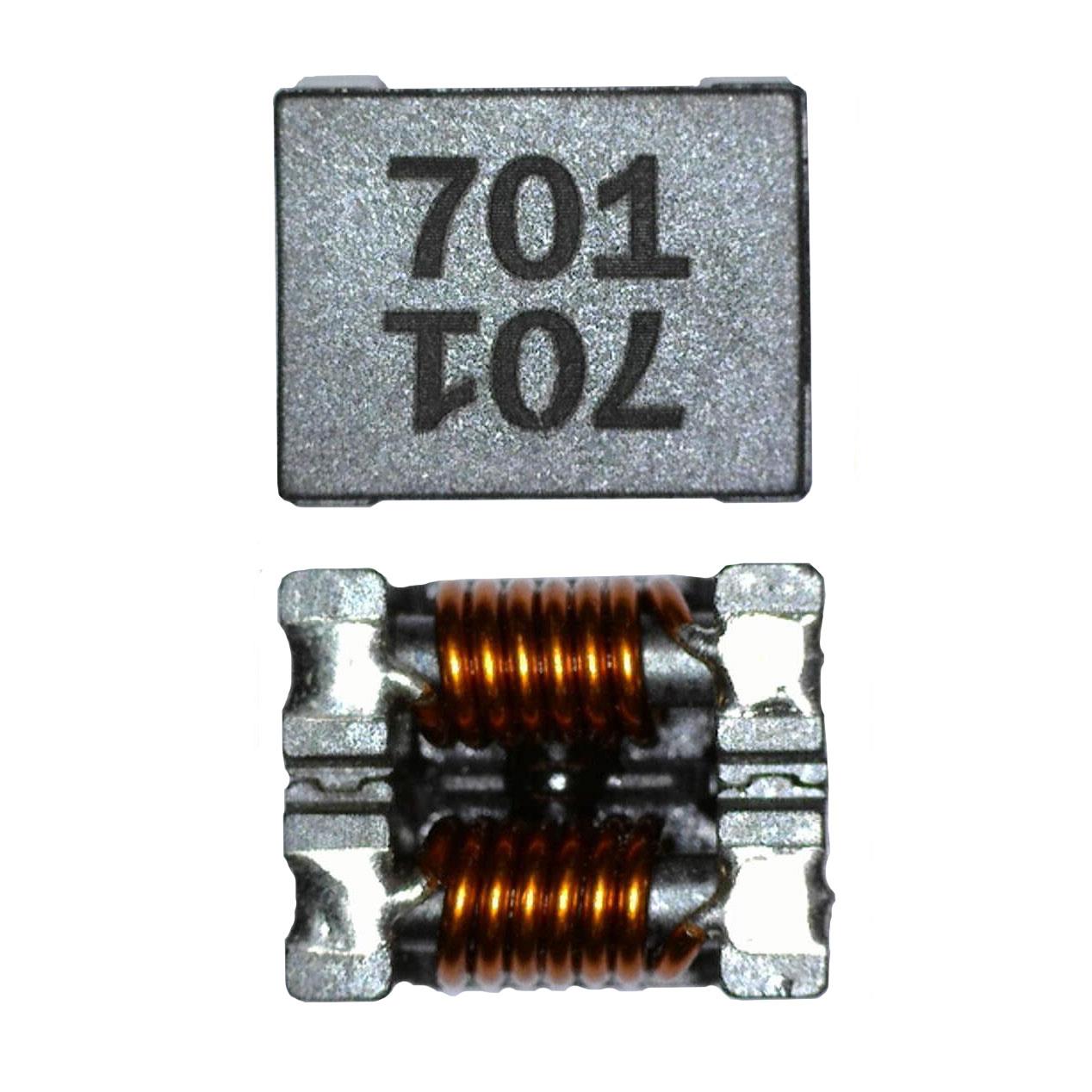

The Abracon ACMP-Q9050-102-T is a surface-mount common mode choke designed for automotive power applications. It features a ferrite core and operates within a temperature range of -40°C to +125°C. The component has a maximum DC current rating of 5A and an impedance of 1 kOhms at 100 MHz. Its maximum DC resistance is 10 mOhms. The physical dimensions are 9mm in length, 7mm in width, and 4.5mm in height.
Feature Summary
- Designed for automotive power applications with AEC qualification
- Utilizes ferrite core material for effective noise suppression
- Surface mount construction for PCB integration
Applications
- Automotive power circuits
- Common mode noise filtering
- Electronics requiring AEC qualified components
Procurement Notes
Verify the specific impedance value against official datasheets, as sources vary between 750 ohms and 1 kOhm. Confirm the package type matches project requirements, noting availability in cut tape or reel formats. Ensure the manufacturer part number corresponds exactly to the required specifications before ordering.
Selection Notes
Select this component for applications requiring high current handling up to 5A in compact spaces. Consider the operating temperature range suitable for automotive environments. Verify footprint compatibility with PCB design constraints given the 9x7x4.5mm dimensions.
Part Context
This part belongs to the ACMP-Q9050 series from Abracon, which focuses on automotive-grade common mode chokes. The series offers various impedance options while maintaining consistent physical dimensions and current ratings suitable for demanding automotive electronic systems.
Replacement Considerations
ACMP-Q9050-152-T is a related variant with different impedance characteristics. Verify electrical parameters match application needs when considering substitutes.
