Product Detailed Parameters
- Description：CMC 100UH 150MA 2LN 5.1KOHM SMD
- Series：ACMS-Q3225
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：150mA
- DC Resistance (DCR) (Max)：1.5Ohm
- Voltage Rating - DC：80V
- Voltage Rating - AC：-
- Operating Temperature：-55°C ~ 150°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height (Max)：0.098" (2.50mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：100 µH @ 100 kHz
- Impedance @ Frequency：5.1 kOhms @ 10 MHz
- Qualification：-
- Grade：-
Download product information
Overview

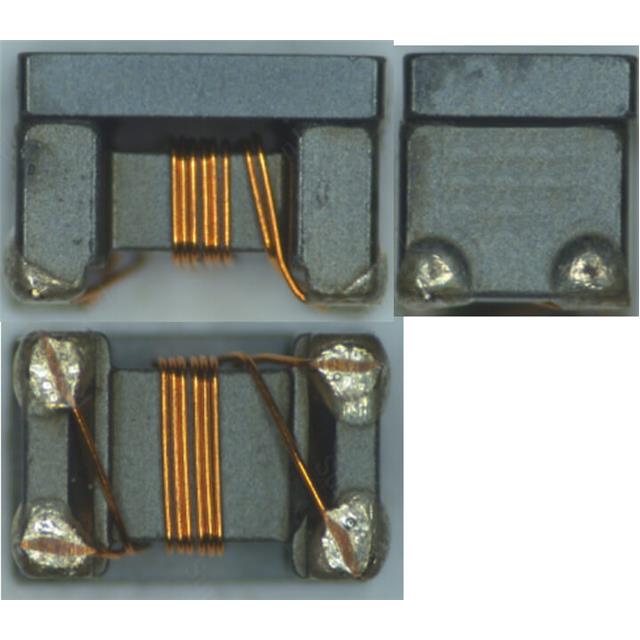

The Abracon ACMS-Q3225-101-T is a surface-mount common mode choke from the ACMS-Q3225 series. It features an inductance of 100 µH and a maximum DC resistance of 1.5 Ω. The component supports a rated DC current of 150 mA and offers an impedance of 5.1 kΩ at 10 MHz. Designed for robust performance, it operates within a temperature range of -55°C to +150°C.
Feature Summary
- Provides effective common mode noise suppression for high-speed data lines
- Supports dual-line configurations with compact SMD footprint
- Engineered for stable operation across extended industrial temperature ranges
Applications
- High-speed serial interface filtering
- USB port protection circuits
- Ethernet signal line noise suppression
Procurement Notes
Verify the specific suffix and tolerance requirements against the official Abracon datasheet before ordering. Confirm that the 150 mA current rating and 1.5 Ω DCR meet the target circuit constraints. Ensure the -55°C to +150°C operating range aligns with the final application environment specifications.
Selection Notes
Select this component when designing for space-constrained applications requiring reliable EMI filtering on differential pairs. The 3225 package size balances performance with board real estate efficiency. Consider the 100 µH inductance value for its effectiveness in attenuating high-frequency interference while maintaining low insertion loss for the desired signal bandwidth.
Part Context
This part belongs to the ACMS-Q3225 series of passive components manufactured by Abracon LLC. The series focuses on providing compact filtering solutions for modern electronic devices. These chokes are designed to integrate seamlessly into surface-mount assembly processes, supporting the miniaturization trends in consumer and industrial electronics hardware design.
Replacement Considerations
Consult the manufacturer's cross-reference documentation for verified substitutes. Ensure any alternative maintains identical 100 µH inductance, 150 mA current rating, and 3225 package dimensions to preserve PCB layout integrity and electrical performance characteristics.
