Product Detailed Parameters
- Description：CMC 100UH 150MA 2LN 4KOHM SMD
- Series：ACMS-Q3225C
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：150mA
- DC Resistance (DCR) (Max)：2.2Ohm
- Voltage Rating - DC：80V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 150°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height (Max)：0.100" (2.54mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：100 µH @ 100 kHz
- Impedance @ Frequency：4 kOhms @ 10 MHz
- Qualification：-
- Grade：-
Download product information
Overview

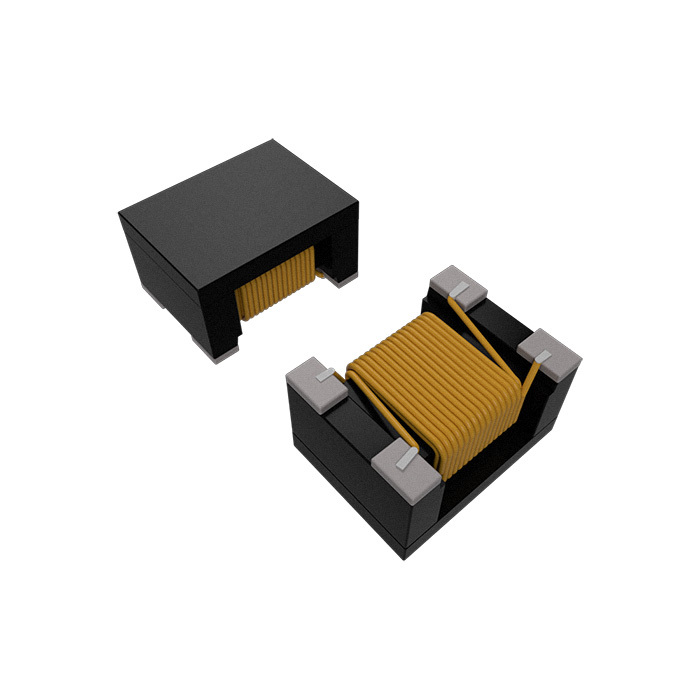

The ACMS-Q3225C-101-T is a surface-mount common mode choke from the ACMS-Q3225C series, designed for automotive applications. It features an inductance of 100 µH at 100 kHz and offers high impedance of 4 kΩ at 10 MHz. The component supports a maximum DC current of 150 mA with a DC resistance of 2.2 Ω. It operates within a temperature range of -40°C to +150°C and complies with AEC-Q200 standards.
Feature Summary
- AEC-Q200 qualified for automotive reliability
- High impedance performance at 10 MHz
- Compact 3225 surface mount package
Applications
- Automotive signal line filtering
- RF choke applications
- Common mode noise suppression in vehicle electronics
Procurement Notes
Verify the specific suffix 'T' corresponds to the required tape and reel packaging configuration. Confirm that the 150 mA current rating meets the circuit's continuous DC requirements. Ensure the operating temperature range up to 150°C aligns with the thermal environment of the intended automotive installation site.
Selection Notes
Select this component when AEC-Q200 compliance is mandatory for automotive systems. Choose based on the 100 µH inductance value and 150 mA current limit. Consider the 3225 footprint for space-constrained PCB layouts requiring robust common mode rejection at high frequencies.
Part Context
This part belongs to Abracon’s ACMS-Q3225C series of automotive-grade common mode chokes. The series provides shielded designs suitable for harsh environments. The Q-series designation indicates qualification to automotive electronic council standards, ensuring durability and consistent performance in vehicle electrical systems.
Replacement Considerations
Check for direct substitutes within the ACMS-Q3225C series with matching 100 µH inductance and 150 mA rating. Verify pin compatibility and impedance curves against alternative automotive-grade chokes from other manufacturers if supply constraints exist.
