ACP20-102

Overview

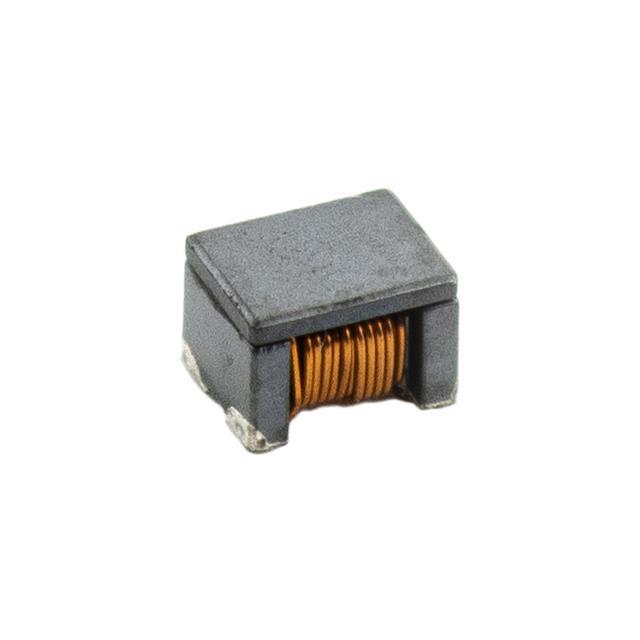

The ACP20-102 is a two-line common mode choke designed for electromagnetic interference (EMI) filtering and noise suppression in high-speed data lines and power applications. It features a surface mount horizontal package with four PC pads. The component operates with a rated current of 1.5A and exhibits a DC resistance (DCR) of 100mOhm. At a frequency of 100 MHz, the impedance is specified at 1 kOhms.

Feature Summary

• Provides effective EMI filtering and noise suppression for high-speed data lines
• Supports dual-line configuration for common mode noise reduction
• Utilizes a compact surface mount horizontal package design

Applications

• High-speed data line filtering
• Power application noise suppression
• EMI mitigation in electronic circuits

Procurement Notes

Verify the specific manufacturer datasheet from Allied Components International or authorized distributors to confirm exact electrical tolerances and packaging details. Ensure the part number matches the required impedance and current ratings for your specific circuit design before procurement.

Selection Notes

Select this component when dual-line common mode noise suppression is required for high-speed interfaces. Consider the 1.5A current rating and 100mOhm DCR to ensure compatibility with your power budget and signal integrity requirements.

Part Context

This component belongs to the common mode choke category from Allied Components International. It is engineered for surface mount assembly, offering a solution for integrating noise filtering directly onto printed circuit boards without requiring through-hole mounting techniques.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify pinout, impedance curves, and physical dimensions against potential alternatives to ensure functional equivalence.
