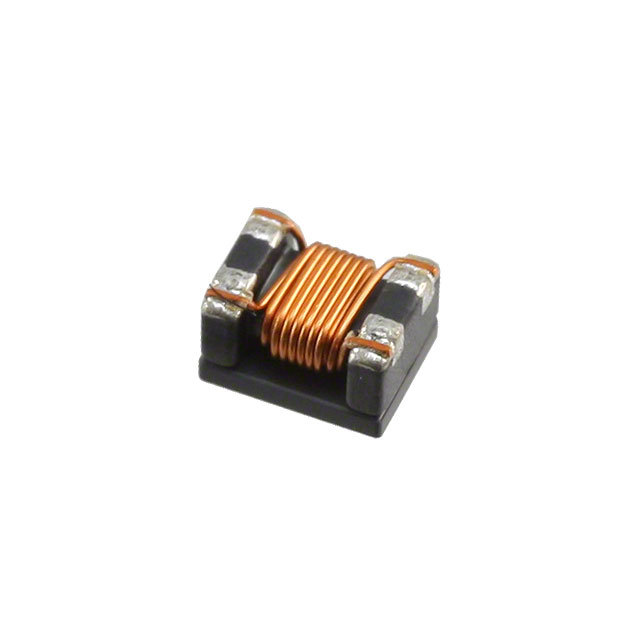

ACP3225-102-2P-TL000

$0.71

Description：CMC 1.5A 2LN 1 KOHM SMD
Series：ACP
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:6c4acc5c0309 Category: Common Mode Chokes Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 1.5A 2LN 1 KOHM SMD
Series：ACP
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1.5A
DC Resistance (DCR) (Max)：50mOhm (Typ)
Voltage Rating - DC：60V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 85°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max)：0.079" (2.00mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：1 kOhms @ 100 MHz
Qualification：-
Grade：-

Download product information

ACP3225-102-2P-TL000

Overview

The TDK ACP3225-102-2P-TL000 is a surface-mount common mode filter choke designed for automotive and industrial applications. It features a 1210 (3225 metric) package with two channels. Key electrical parameters include an inductance of 1 mH, impedance of 1 kOhms, maximum DC current of 1.5 A, and maximum DC resistance of 50 mOhms. The device operates within a temperature range of -40°C to +85°C and holds AEC-Q200 qualification.

Feature Summary

Provides effective suppression of common mode noise in power supply lines
Designed for high current handling with low DC resistance
Qualified for automotive reliability standards

Applications

Automotive power train systems
Portable equipment power-supply noise reduction
Industrial safety circuits

Procurement Notes

Verify the specific suffix TL000 against the official TDK datasheet to confirm packaging type and tape/reel specifications. Ensure the component meets the required AEC-Q200 qualification status for your target application environment. Cross-reference the impedance and current ratings with system requirements before finalizing procurement.

Selection Notes

Select this component when a 1210 footprint is required for common mode filtering in power lines. The 1.5 A rating suits moderate current applications, while the 1 kOhm impedance targets specific frequency ranges. Consider thermal management within the -40°C to +85°C operating window during design integration.

Part Context

This part belongs to the TDK ACT/ACP series of common mode chokes, which are engineered for compact PCB mounting. The series offers various inductance and current ratings to address diverse EMI suppression needs in modern electronic designs, particularly where space constraints and reliability are critical factors.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with alternative components by matching inductance, impedance, current rating, and package dimensions.
