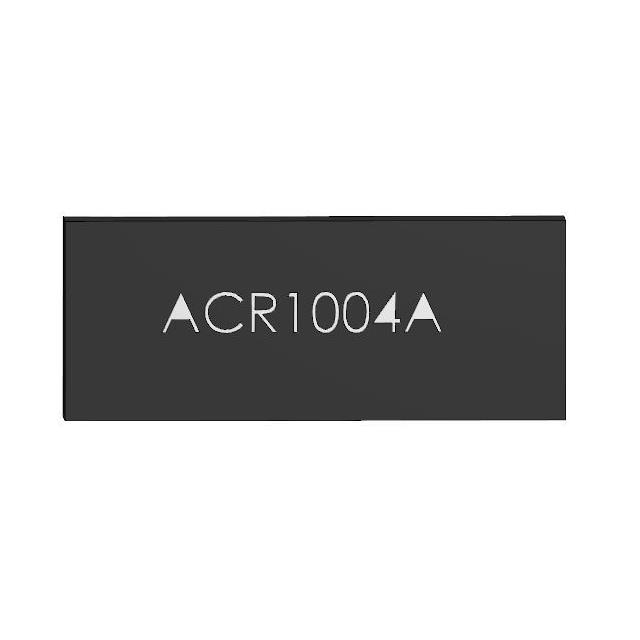

ACR1004A

$3.51

Description：2.4/5/6GHZ WIFI/BT/ZIGBEE ANT
Series：ACR
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:405929f5ba91 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ACR1004A is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is 2.4/5/6GHZ WIFI/BT/ZIGBEE ANT. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ACR1004A

Description：2.4/5/6GHZ WIFI/BT/ZIGBEE ANT
Series：ACR
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (3GHz ~ 4GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.45GHz, 5.5GHz, 6.5GHz
Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.125GHz
Antenna Type：Chip
Number of Bands：3
VSWR：-
Return Loss：-5dB
Gain：4.02dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.059" (1.50mm)
Applications：Bluetooth, ISM, Wi-Fi, Zigbee™
Power - Max：-

Antennas RF datasheet and documents for ACR1004A

ACR1004A

Antennas RF Overview

The ACR1004A is a WiFi 6E chip antenna manufactured by Abracon LLC, designed for surface mount applications. It utilizes LTCC technology to provide optimal efficiency across dual frequency bands: 2.4GHz to 2.5GHz and 5.15GHz to 7.125GHz. This component supports Bluetooth, ISM, Wi-Fi, and Zigbee protocols. The antenna is constructed as a compact chip suitable for high-density electronic designs.

Antennas RF Feature Summary

Supports WiFi 6E standards with dual-band operation
Utilizes LTCC technology for high efficiency
Surface mount package design

Antennas RF Applications

Bluetooth devices
ISM band equipment
Wi-Fi routers and access points
Zigbee network nodes

Antennas RF Procurement Notes

Verify the specific datasheet version when sourcing, as manufacturer documentation may be updated. Confirm that the received components match the Abracon LLC part number ACR1004A exactly. Ensure compatibility with your PCB layout regarding the required footprint and soldering profile for surface mount assembly.

Antennas RF Selection Notes

Select this component when dual-band coverage from 2.4GHz to 7.125GHz is required in a single compact form factor. It is appropriate for designs needing support for WiFi 6E alongside legacy Bluetooth and Zigbee connectivity. Consider its physical dimensions and mounting requirements against available board space constraints.

Antennas RF Part Context

This part belongs to Abracon's RF antenna portfolio, specifically focusing on chip antennas for wireless communication. It complements other Abracon products like the ACR1504I3, which targets different frequency ranges such as 433/868/915MHz. The ACR1004A-EVB serves as an evaluation board for testing this specific antenna model.
