ACR4006X is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 600-6000MHZ WIDEBAND CHIP. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ACR4006X
- Description：RF ANT 600-6000MHZ WIDEBAND CHIP
- Series：ACR
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：780MHz, 2.2GHz, 4.65GHz
- Frequency Range：600MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 6GHz
- Antenna Type：Chip
- Number of Bands：3
- VSWR：-
- Return Loss：-
- Gain：-2.33dBi, 0.87dBi, 1.26dBi, 0.14dBi, 0.95dBi, 3.56dBi, 3.54dBi, 4.42dBi, -1.15dBi, 0.86dBi, 3.59dBi, 2.17dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.197" (5.00mm)
- Applications：4G, 5G, LTE
- Power - Max：-
Antennas RF datasheet and documents for ACR4006X
Antennas RF Overview

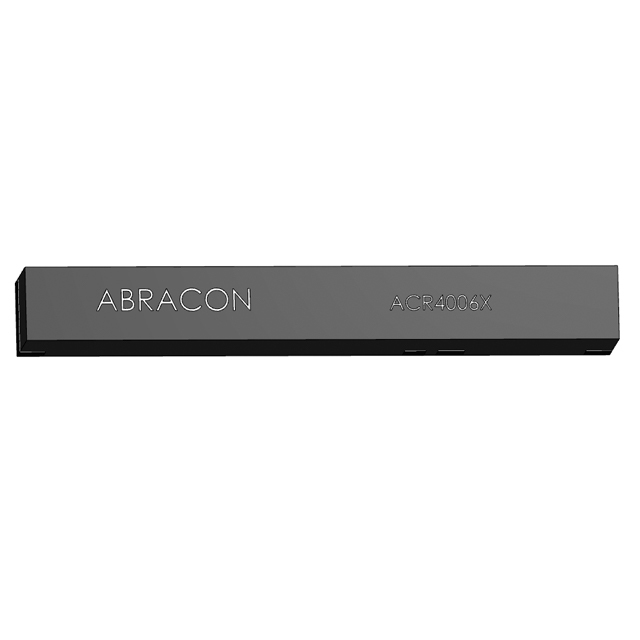

The ACR4006X is a ceramic chip antenna manufactured by Abracon LLC, designed for ultra-wideband RF applications. It operates across three distinct frequency bands: 600MHz to 960MHz, 1.71GHz to 2.69GHz, and 3.3GHz to 6GHz. The component features linear polarization and is available in a surface-mount package with dimensions of 40mm x 6mm x 5mm. It supports center frequencies of 780MHz, 2.2GHz, and 4.65GHz, offering gain values ranging from -2.33dBi to 4.42dBi depending on the specific band.
Antennas RF Feature Summary
- Ultra-wideband operation covering 600MHz to 6GHz
- Linear polarization design for stable signal transmission
- RoHS/RoHS II compliant construction
Antennas RF Applications
- 5G NR mobile communications
- 4G LTE network devices
- Cellular IoT modules
Antennas RF Procurement Notes
Verify that the ordered part number matches the official Abracon specification sheet exactly. Confirm compliance requirements such as RoHS status and MSL level before integration. Ensure the supplier provides valid documentation for the ceramic material properties and soldering recommendations to maintain performance integrity during assembly.
Antennas RF Selection Notes
Select this component when an ultra-wideband solution is required for cellular standards including 5G, 4G, and LTE. Consider the physical dimensions of 40x6x5mm for board space constraints. Evaluate the specific gain requirements across the three frequency bands to ensure adequate signal coverage for the target application environment.
Antennas RF Part Context
This antenna belongs to the ACR series of ceramic chip antennas from Abracon. These components are engineered for edge mounting and are optimized for compact wireless devices. The series provides a reliable alternative to traditional metal antennas, offering consistent performance across multiple cellular frequency ranges in a small form factor.
Antennas RF Replacement Considerations
Consult official Abracon documentation for direct substitutes. Verify dimensional compatibility and electrical characteristics against current inventory parts.
