ACS1006U

Antennas RF Overview

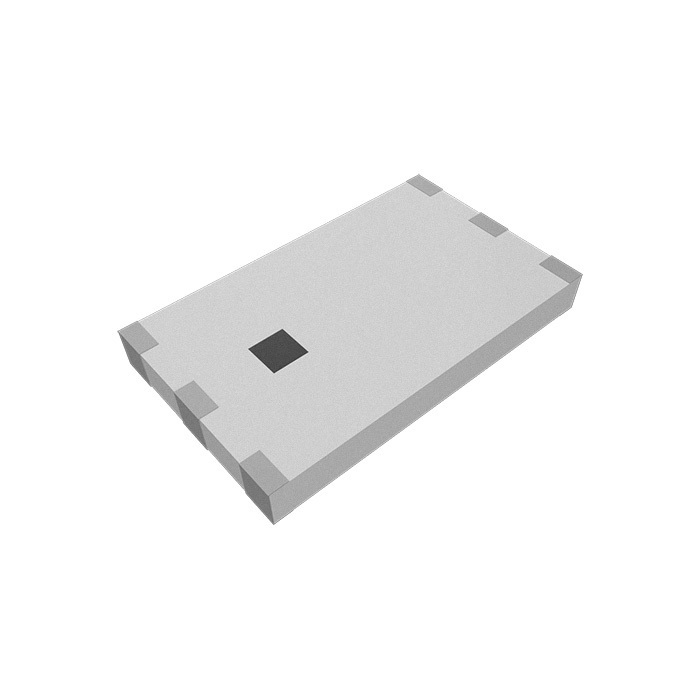

The ACS1006U is a UWB multi-layer chip antenna manufactured by Abracon LLC. It operates within a frequency range of 3.1 GHz to 10.3 GHz, with a center frequency of 6.7 GHz. The component provides a gain of 2.2 dBi and maintains an impedance of 50 ohms. It features a VSWR of 2 and supports surface mount installation. The physical dimensions are 10 mm in length, 6 mm in width, and 1.2 mm in height. It functions reliably between -40°C and +85°C.

Antennas RF Feature Summary

• Multi-layer chip construction for compact integration
• Ultra-wideband operation across 3.1 to 10.3 GHz
• Low-profile SMD design suitable for space-constrained applications

Antennas RF Applications

• UWB (Ultra-Wide Band) systems
• IoT and M2M connectivity
• Secure car access control
• Item tracking solutions
• Indoor navigation systems

Antennas RF Procurement Notes

Verify the specific ordering suffix required for tape-and-reel packaging when placing orders. Confirm RoHS compliance status as documentation may vary by region or revision. Check current availability as the part may be marked not recommended for new designs. Ensure the correct DigiKey or Mouser distributor codes are used for accurate sourcing. Validate lead times due to potential supply constraints.

Antennas RF Selection Notes

Select this antenna for applications requiring wide bandwidth coverage from 3.1 to 10.3 GHz. Consider its 2.2 dBi gain and 50-ohm impedance for standard RF matching networks. Evaluate the 1.2 mm height for strict vertical space limitations. Ensure the operating temperature range of -40°C to +85°C meets environmental requirements. Verify compatibility with UWB protocols for intended use cases.

Antennas RF Part Context

This component belongs to Abracon's UWB antenna series designed for high-speed data transmission. It utilizes multi-layer technology to achieve performance in a small form factor. The product targets markets needing precise location tracking and secure communication. It serves as a passive radiating element integrated directly onto PCBs.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
