ACSB-03-T

Overview

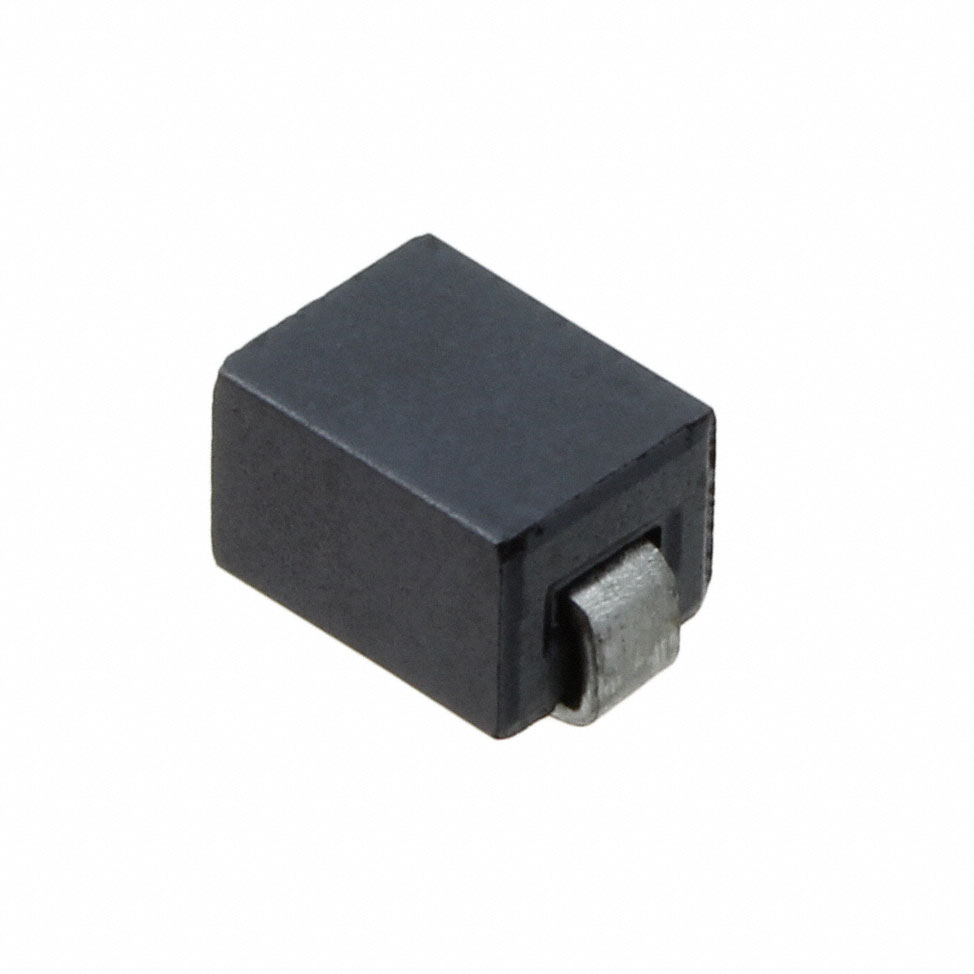

The ACSB-03-T is a surface-mount ferrite bead manufactured by Abracon LLC. It features a single-line configuration with J-leads in a 2-SMD package. The component provides an impedance of 47 Ohms at 100 MHz and supports a maximum DC current of 5 Amperes. Operating temperatures range from -40°C to +85°C, ensuring reliability across standard industrial conditions.

Feature Summary

• Provides effective electromagnetic interference suppression through high impedance characteristics at target frequencies.
• Designed for surface-mount integration using J-lead termination for secure PCB attachment.
• Capable of handling high direct current loads up to 5 Amperes without saturation.

Applications

• Power line filtering in electronic circuits
• Electromagnetic interference suppression in signal paths
• Noise reduction in high-current DC applications

Procurement Notes

Verify the specific datasheet version before procurement, as component specifications may be subject to change notifications. Confirm that the J-lead footprint matches your PCB design requirements. Ensure the selected supplier provides original manufacturer packaging to guarantee authenticity and traceability of the ferrite beads.

Selection Notes

Select this component when designing circuits requiring robust noise suppression for high-current lines. The 47 Ohm impedance at 100 MHz makes it suitable for general-purpose EMI filtering. Verify that the 5A current rating aligns with your circuit's operational demands to prevent thermal issues or performance degradation under load.

Part Context

This ferrite bead belongs to Abracon's passive component portfolio, specifically within the ferrite beads and chips category. It serves as a critical element for maintaining signal integrity and power quality in compact electronic assemblies. The component complements other passive filters by offering reliable attenuation of high-frequency noise.

Replacement Considerations

Check for equivalent ferrite beads with matching 47 Ohm impedance at 100 MHz and 5A current ratings. Ensure replacement parts support the same 2-SMD J-lead package dimensions. Verify temperature stability ranges match the -40°C to +85°C specification for environmental compatibility.
