ACSB-04-T

Overview

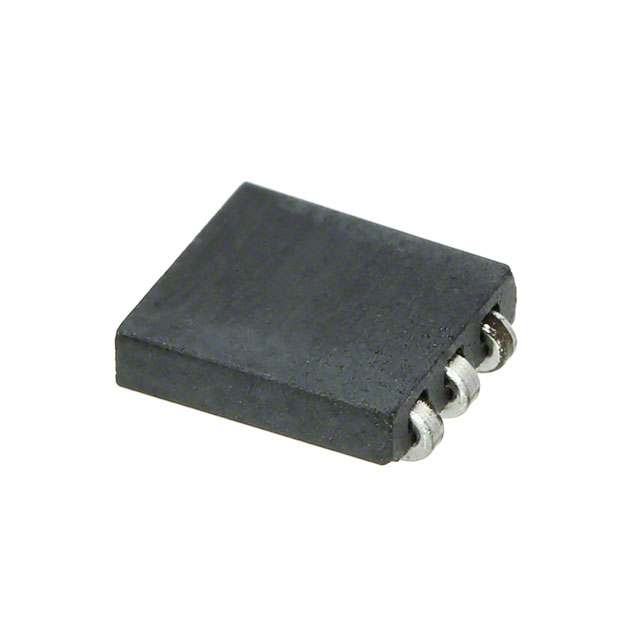

The ACSB-04-T is a surface-mount ferrite chip bead array manufactured by Abracon LLC. It features a six-terminal SMD J-lead package designed for high-density mounting applications where board space is limited. The component provides superior attenuation across a broad frequency range extending into the GHz spectrum, making it suitable for EMI suppression in compact electronic designs.

Feature Summary

• Provides superior electromagnetic interference attenuation across a broad frequency range up to the GHz spectrum
• Designed for high-density mounting configurations to optimize board space utilization
• Utilizes a six-terminal SMD J-lead package structure

Applications

• High-density circuit board layouts requiring minimal footprint
• Broadband electromagnetic interference suppression systems
• GHz-range signal integrity management

Procurement Notes

Verify the specific impedance characteristics and current ratings against the official Abracon datasheet before integration. Confirm that the six-terminal J-lead package aligns with your PCB footprint requirements. Ensure the selected variant meets the necessary EMI attenuation specifications for your target frequency range.

Selection Notes

Select this component when board real estate is constrained and multi-line filtering is required. The J-lead termination style facilitates automated placement in dense assemblies. Evaluate the broadband attenuation performance to ensure it covers the specific noise frequencies present in your application environment.

Part Context

This part belongs to the ACSB series of surface-mount ferrite chip beads produced by Abracon Corporation. The series includes various terminal counts and package sizes, such as the ACSB-02-T and ACSB-03-T, offering scalable solutions for different density and filtering needs within the same product family.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative ferrite bead arrays from other manufacturers based on impedance curves and physical dimensions.
