Product Detailed Parameters
- Description：FERRITE BEAD 35 OHM 2218 1LN
- Series：ACSB-05
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：-
- Number of Lines：-
- Impedance @ Frequency：35 Ohms @ 100 MHz
- Current Rating (Max)：5A
- DC Resistance (DCR) (Max)：3mOhm (Typ)
- Ratings：-
- Operating Temperature：-40°C ~ 85°C
- Package / Case：2218 (5648 Metric), 4 Lead
- Mounting Type：Surface Mount
- Height (Max)：0.118" (3.00mm)
- Size / Dimension：0.220" L x 0.189" W (5.60mm x 4.80mm)
- Features：-
Download product information
Overview

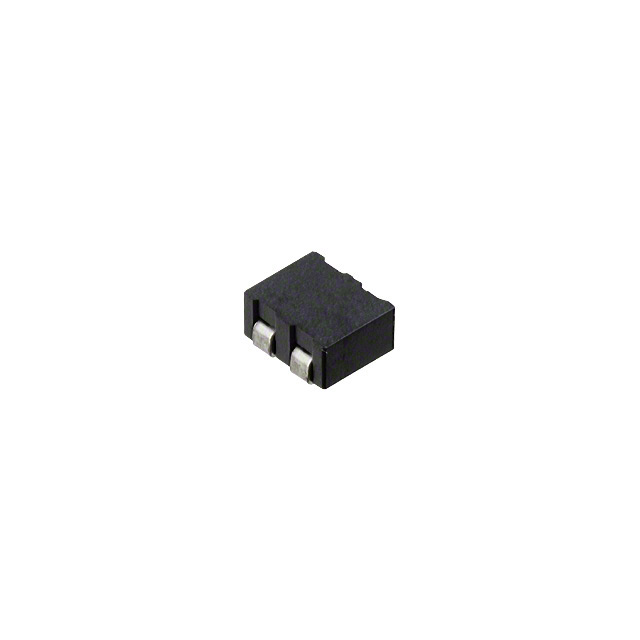

The Abracon ACSB-05-T is a four-terminal surface-mount ferrite bead chip designed for high-current noise suppression. It features a 2218 (5648 metric) package with dimensions of 5.60mm x 4.80mm x 3.00mm. The component provides an impedance of 35 Ohms at 100 MHz and supports a maximum rated current of 5A. Its typical DC resistance is 3 milliohms, ensuring minimal power loss in power delivery networks. The device operates within a temperature range of -40°C to +85°C and complies with RoHS3 standards.
Feature Summary
- Four-terminal architecture for enhanced current handling and low impedance paths
- High saturation current capability suitable for power rail filtering
- Compact surface-mount footprint optimized for dense PCB layouts
Applications
- Power supply output filtering
- DC-DC converter noise suppression
- High-speed data line EMI mitigation
Procurement Notes
This component has been officially declared obsolete by the manufacturer as of December 14, 2023. Verification of final stock availability through authorized distributors is required before integration into new designs. Engineers should initiate replacement qualification processes immediately due to the discontinued lifecycle status.
Selection Notes
Designers must verify that the 5A current rating meets the specific application's peak load requirements. The 35 Ohm impedance at 100 MHz defines the effective frequency range for noise attenuation. Ensure the 2218 package dimensions fit within the designated PCB silkscreen and keep-out areas without interfering with adjacent components.
Part Context
The ACSB-05-T belongs to the Abracon ACSB-05 series of surface-mount ferrite chip beads. This series focuses on providing robust electromagnetic interference suppression for modern electronic systems requiring efficient power management and signal integrity protection in compact form factors.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete status, engineers must identify equivalent components based on matching electrical parameters and mechanical footprint constraints.
