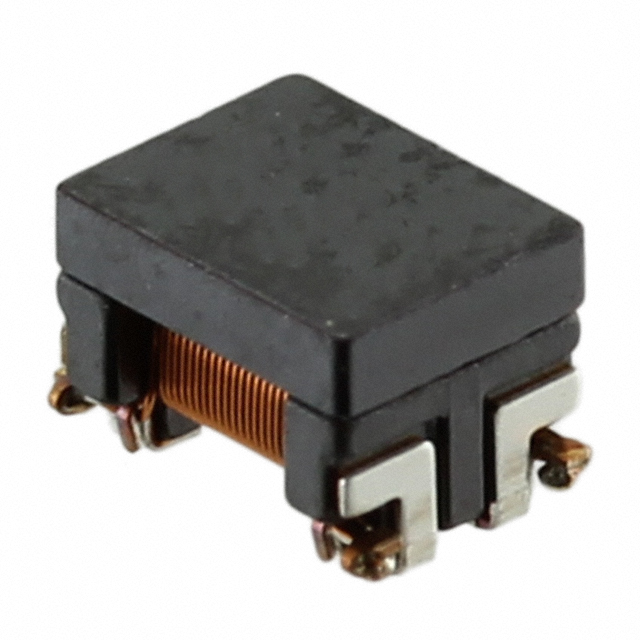

ACT1210-110-2P-TL00

$1.35

Description：CMC 11UH 300MA 2LN 550 OHM SMD
Series：ACT
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3ef198cb14fc Category: Common Mode Chokes Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 11UH 300MA 2LN 550 OHM SMD
Series：ACT
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：300mA
DC Resistance (DCR) (Max)：400mOhm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 150°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.154" L x 0.098" W (3.90mm x 2.50mm)
Height (Max)：0.098" (2.50mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：11 µH @ 100 kHz
Impedance @ Frequency：550 Ohms @ 10 MHz
Qualification：-
Grade：-

Download product information

ACT1210-110-2P-TL00

Overview

The TDK ACT1210-110-2P-TL00 is a two-line common mode filter designed for automotive signal lines. It features an inductance of 11 µH at 100 kHz and provides an impedance of 550 Ω at 10 MHz. The component supports a maximum DC current of 300 mA with a maximum DC resistance of 400 mΩ. Rated for 80 V DC, it operates within a temperature range of -55°C to +150°C. The device utilizes a surface mount 1210 package measuring 3.9 mm x 2.5 mm x 2.5 mm.

Feature Summary

Designed specifically for automotive signal line applications
Provides effective common mode noise suppression
Capable of operating under extended temperature conditions

Applications

Automotive signal line protection
Common mode noise filtering in vehicle electronics

Procurement Notes

Verify the specific part number against official TDK documentation to ensure accuracy. Confirm that the required electrical parameters, such as inductance and current ratings, align with the design specifications. Check for any recent product change notifications or obsolescence notices from the manufacturer before finalizing procurement decisions.

Selection Notes

Select this component when designing circuits requiring robust common mode filtering for automotive signal lines. Ensure the operating environment stays within the specified temperature range. Verify that the physical dimensions fit the available PCB space and that the current rating meets the circuit requirements without saturation.

Part Context

This component belongs to the TDK ACT series of common mode filters. The series offers various inductance values tailored for different automotive applications. The ACT1210 designation indicates the specific package size and form factor used in this model.
