Product Detailed Parameters
- Description：CMC 100UH 115MA 2LN SMD AEC-Q200
- Series：ACT1210
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：115mA
- DC Resistance (DCR) (Max)：3Ohm
- Voltage Rating - DC：80V
- Voltage Rating - AC：-
- Operating Temperature：-55°C ~ 150°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height (Max)：0.098" (2.50mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：100 µH @ 100 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

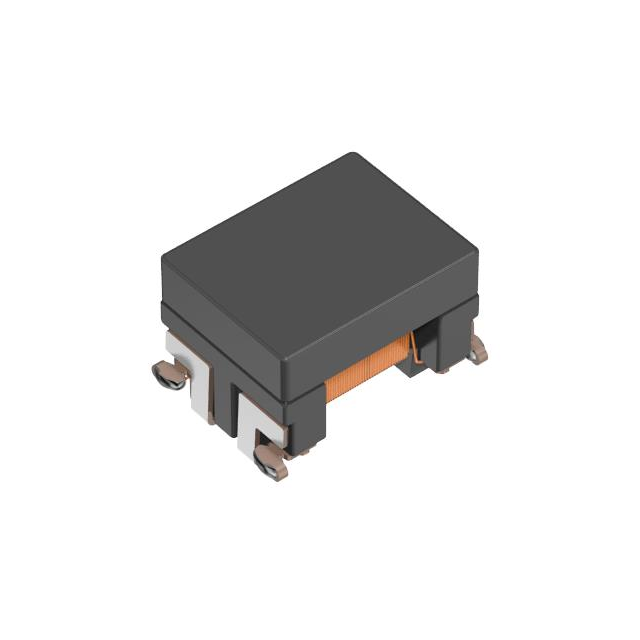

The TDK ACT1210D-101-2P-TL00 is a surface-mount common mode choke designed for automotive CAN-FD systems. It features an inductance of 100 µH and a maximum DC current rating of 115 mA. The component has a maximum DC resistance of 80 Ω and operates within a temperature range of -40°C to +150°C. It is AEC-Q200 qualified and housed in a 1210 (3225 metric) package.
Feature Summary
- Designed specifically for automotive CAN-FD signal line applications
- Qualified under the AEC-Q200 automotive reliability standard
- Capable of operation in high-temperature environments up to +150°C
Applications
- Automotive CAN-FD bus networks
- Vehicle body control modules
- Infotainment system data lines
Procurement Notes
Verify the specific suffix TL00 against the manufacturer's latest documentation to confirm packaging details. Ensure the selected variant matches the required inductance and current ratings for the target CAN-FD application. Cross-reference the AEC-Q200 certification status with official TDK records before finalizing procurement specifications.
Selection Notes
Select this component when designing for CAN-FD protocols requiring higher bandwidth than standard CAN. The 100 µH inductance provides appropriate filtering for these faster data rates. Verify that the 115 mA current rating exceeds the maximum expected bus current to prevent saturation. Confirm compatibility with the 1210 footprint constraints of the PCB layout.
Part Context
This part belongs to the TDK ACT series of common mode filters. These components are engineered for automotive electronics, offering compact surface-mount solutions for noise suppression. The series supports various inductance values tailored for different automotive communication standards, including CAN and Ethernet.
Replacement Considerations
Consult TDK documentation for verified substitutes within the ACT series. Ensure any replacement maintains the 1210 package dimensions and meets the AEC-Q200 qualification requirements for automotive use.
