Product Detailed Parameters
- Description：CMC 130UH 115MA 2LN 6.7KOHM SMD
- Series：ACT1210
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：115mA
- DC Resistance (DCR) (Max)：3.5Ohm
- Voltage Rating - DC：80V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.154" L x 0.098" W (3.90mm x 2.50mm)
- Height (Max)：0.098" (2.50mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：130 µH @ 100 kHz
- Impedance @ Frequency：6.7 kOhms @ 10 MHz
- Qualification：-
- Grade：-
Download product information
Overview

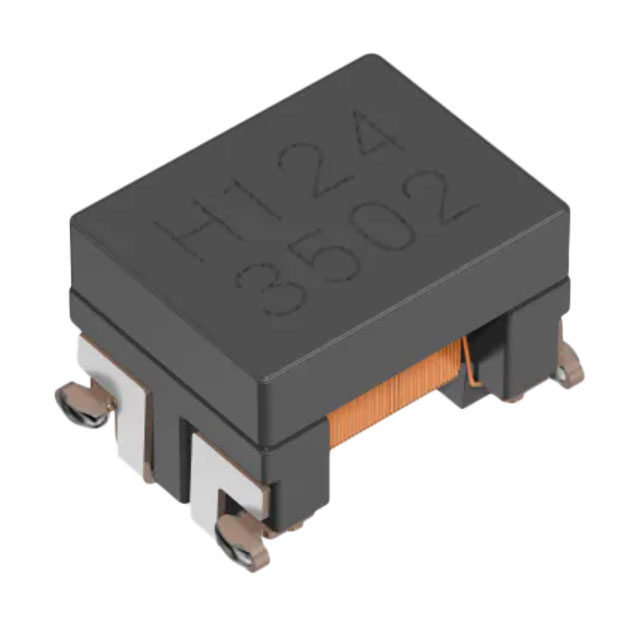

The TDK ACT1210D-131-2P-TL00 is a two-channel common mode filter choke designed for automotive signal lines. It features an inductance of 130 µH at 100 kHz with a tolerance of -30% to +50%. The component supports a maximum DC current of 115 mA and has a maximum DC resistance of 3.5 Ohms. Rated for 80 VDC, it operates within a temperature range of -40°C to +125°C. The device meets AEC-Q200 qualification standards and is housed in a 1210 (3225 metric) surface-mount package measuring 3.2 mm x 2.5 mm x 2.5 mm.
Feature Summary
- Engineered specifically for automotive CAN-FD system applications
- Complies with AEC-Q200 automotive reliability standards
- Provides common mode noise suppression for signal lines
Applications
- Automotive CAN-FD bus systems
- Automotive signal line filtering
Procurement Notes
Verify the specific suffix TL00 against official TDK documentation to confirm packaging configuration. Ensure the application voltage does not exceed the 80 VDC rating. Confirm that the 115 mA current limit aligns with the circuit requirements. Check for RoHS compliance status in the latest datasheet before integration.
Selection Notes
Select this component when designing for CAN-FD networks requiring high inductance in a compact footprint. The 1210 package offers space efficiency compared to larger chokes. Consider the 3.5 Ohm DC resistance impact on signal integrity. Verify thermal performance within the specified -40°C to +125°C operating range for automotive environments.
Part Context
This part belongs to the TDK ACT series of common mode filters. The series includes various inductance values tailored for different automotive communication protocols. The 'D' designation typically indicates specific characteristics for CAN/CAN-FD applications within the product family.
Replacement Considerations
Consult TDK official substitution guides for verified alternatives. Cross-reference inductance, current rating, and package dimensions when evaluating potential substitutes.
