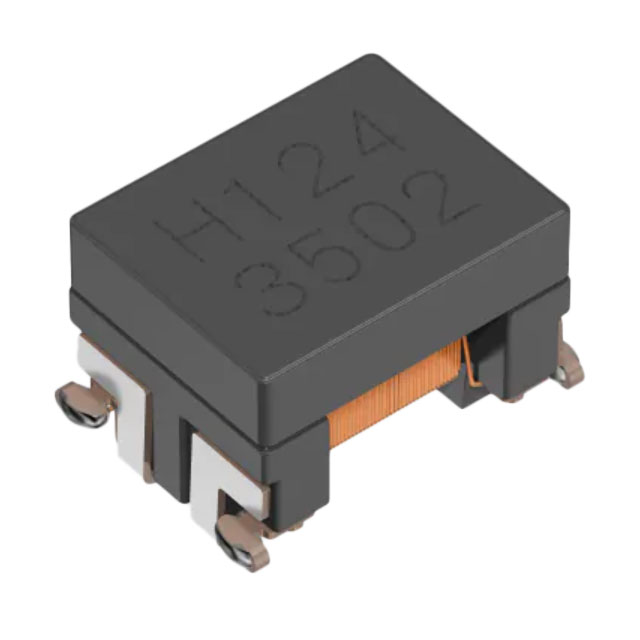

ACT1210D-510-2P-TL00

$1.22

Description：CMC 50UH 115MA 2LN 2.3KOHM SMD
Series：ACT1210
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:37bbaa9ffa34 Category: Common Mode Chokes Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 50UH 115MA 2LN 2.3KOHM SMD
Series：ACT1210
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：115mA
DC Resistance (DCR) (Max)：3Ohm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 150°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.154" L x 0.098" W (3.90mm x 2.50mm)
Height (Max)：0.098" (2.50mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：50 µH @ 100 kHz
Impedance @ Frequency：2.3 kOhms @ 10 MHz
Qualification：-
Grade：-

Download product information

ACT1210D-510-2P-TL00

Overview

The TDK ACT1210D-510-2P-TL00 is a two-channel common mode filter choke designed for automotive signal lines. It features an inductance of 51 µH and a DC resistance of 3 Ohms maximum. The component supports a maximum DC current of 115 mA and operates within a voltage rating of 80 VDC. It meets AEC-Q200 qualification standards and is suitable for CAN-FD applications. The device functions reliably across a temperature range of -40°C to +150°C.

Feature Summary

AEC-Q200 qualified for automotive reliability
Optimized for high-speed CAN-FD bus systems
Compact 1210 surface-mount package

Applications

Automotive CAN-FD signal line filtering
Power train system protection
Safety-critical vehicle electronics

Procurement Notes

Verify the specific suffix 'TL00' against the manufacturer's latest documentation to confirm tape-and-reel specifications. Ensure the selected variant matches the required DC resistance and current ratings for the target circuit design. Cross-reference the part number with official distributor catalogs to confirm availability and authenticity before procurement.

Selection Notes

Select this component when designing for automotive environments requiring operation up to 150°C. The 51 µH inductance value provides appropriate noise suppression for CAN-FD protocols. Verify that the 115 mA current rating exceeds the maximum expected signal line current to prevent saturation. Ensure the PCB footprint accommodates the 1210 (3225 metric) dimensions.

Part Context

This component belongs to the TDK ACT series, which specializes in common mode chokes for automotive applications. The series is engineered to meet stringent automotive industry standards, including AEC-Q200. These filters are specifically tailored for protecting sensitive signal lines in modern vehicles against electromagnetic interference.
