ACT1210E-241-2P-TL00

$1.62

Description：CMC 240UH 70MA 2LN SMD AEC-Q200
Series：ACT
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:84cf7e0df022 Category: Common Mode Chokes Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 240UH 70MA 2LN SMD AEC-Q200
Series：ACT
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：70mA
DC Resistance (DCR) (Max)：4.1Ohm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.154" L x 0.098" W (3.90mm x 2.50mm)
Height (Max)：0.098" (2.50mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：240 µH @ 100 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

ACT1210E-241-2P-TL00

Overview

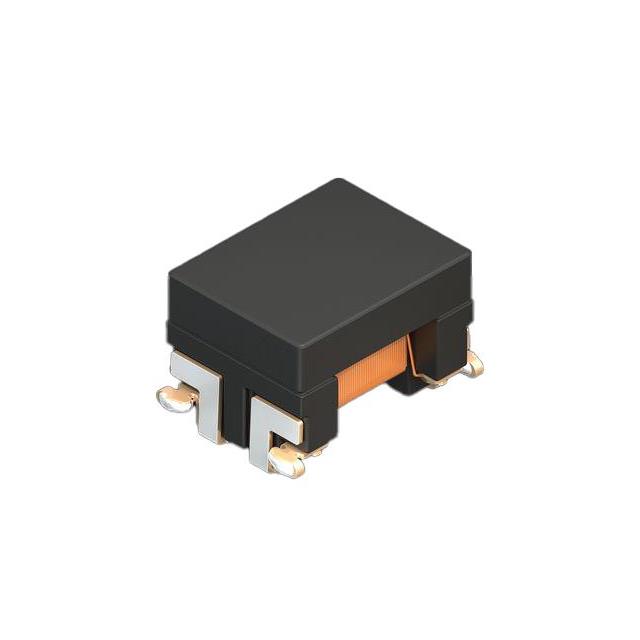

The TDK ACT1210E-241-2P-TL00 is a two-channel surface-mount common mode choke designed for automotive signal lines. It features an inductance of 240 µH at 100 kHz and a maximum DC current rating of 70 mA. The component exhibits a maximum DC resistance of 4.1 Ohms and meets AEC-Q200 qualification standards. It operates within a temperature range of -40°C to +125°C and utilizes a 1210 (3.90mm x 2.50mm) package footprint.

Feature Summary

AEC-Q200 qualified for automotive reliability
Optimized for Ethernet 10BASE-T1S applications
Compact 1210 surface-mount form factor

Applications

Automotive Ethernet 10BASE-T1S signal filtering
Power train signal line protection
Safety system data line interference suppression

Procurement Notes

Verify the specific suffix 'TL00' against the manufacturer's latest datasheet to confirm tape and reel specifications. Ensure the ordering part number matches the required inductance tolerance and current ratings for the target circuit design before finalizing procurement.

Selection Notes

Select this component when designing for 10BASE-T1S automotive Ethernet interfaces requiring robust common mode noise suppression. The 70 mA current rating suits low-power signal lines, while the 240 µH inductance provides effective high-frequency attenuation. Confirm thermal management requirements align with the 125°C maximum operating temperature limit.

Part Context

This component belongs to the TDK ACT series of automotive-grade common mode filters. The 'E' designation typically indicates specific characteristics within the ACT family tailored for Ethernet applications. It shares the standard 1210 footprint with other variants but differs in electrical parameters such as inductance and current handling capabilities.
