Product Detailed Parameters
- Description：CMC 80UH 70MA 2LN SMD AEC-Q200
- Series：ACT
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：70mA
- DC Resistance (DCR) (Max)：2.4Ohm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：AEC-Q200
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.154" L x 0.098" W (3.90mm x 2.50mm)
- Height (Max)：0.098" (2.50mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：80 µH @ 100 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

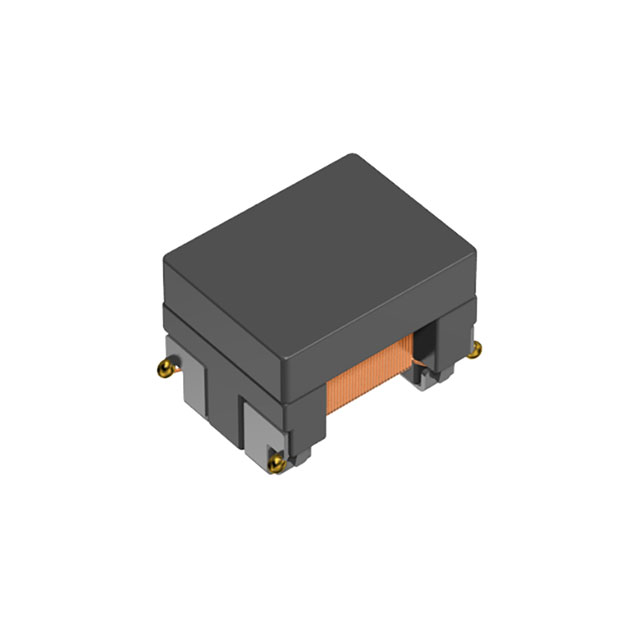

The TDK ACT1210G-800-2P-TL05 is a surface-mount common mode choke designed for automotive signal lines. It features an inductance of 80 µH with tolerances of -30% to +50%. The component supports a maximum DC current of 70 mA and has a maximum DC resistance of 2.4 Ohms. It operates within a temperature range of -40°C to +125°C. The device is housed in a 1210 (3225 metric) package, measuring 3.2 mm x 2.5 mm x 2.5 mm. It holds AEC-Q200 qualification.
Feature Summary
- AEC-Q200 qualified for automotive reliability standards
- Designed specifically for automobile signal line applications
- Unshielded construction for compact PCB integration
Applications
- Automotive Ethernet signal filtering
- Data line noise suppression in vehicles
- Common mode interference reduction in automotive electronics
Procurement Notes
Verify the Not Recommended for New Design (NRND) status before initiating procurement. Confirm that the specific tolerance range (-30%, +50%) aligns with circuit requirements. Ensure the 70 mA current rating meets system load demands. Check for updated lifecycle notices from TDK regarding end-of-life transitions or alternative part recommendations.
Selection Notes
Select this component when automotive-grade certification is mandatory for signal integrity. The 1210 footprint suits space-constrained designs requiring surface-mount technology. Consider the high DC resistance relative to current capacity for power loss calculations. Verify compatibility with automated assembly processes given the reel packaging options available.
Part Context
This part belongs to the TDK ACT series of common mode filters. The 'G' suffix typically denotes automotive grade specifications. It is distinct from standard industrial variants by its rigorous qualification testing. The series offers various inductance values tailored for different data rates and noise profiles in vehicle networks.
Replacement Considerations
Consult TDK official documentation for direct substitutes due to the NRND status. Cross-reference pinouts and impedance characteristics carefully. No public substitute part numbers are confirmed in the provided source material.
