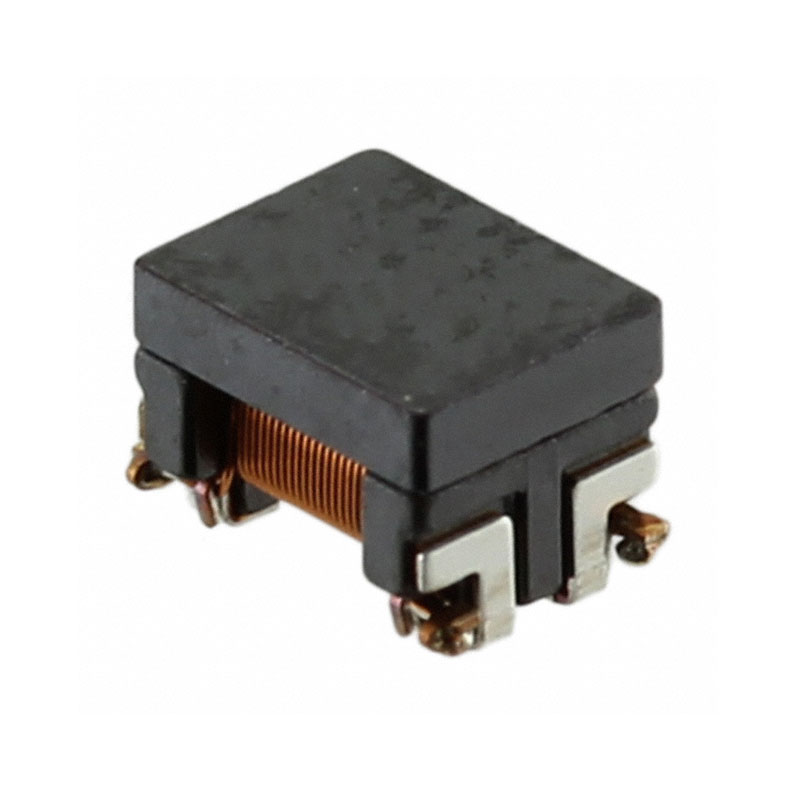

ACT1210R-101-2P-TL00

$1.56

Description：CMC 100UH 150MA 2LN SMD AEC-Q200
Series：ACT
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:03052a12e6d1 Category: Common Mode Chokes Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 100UH 150MA 2LN SMD AEC-Q200
Series：ACT
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：150mA
DC Resistance (DCR) (Max)：1.5Ohm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.49mm)
Height (Max)：0.098" (2.49mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：100 µH @ 100 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

ACT1210R-101-2P-TL00

Overview

The TDK ACT1210R-101-2P-TL00 is a two-channel common mode filter designed for automotive signal lines. It features an inductance of 100 uH and a maximum DC current rating of 150 mA. The component has a maximum DC resistance of 1.5 Ohms and operates within a temperature range of -40°C to +125°C. It is AEC-Q200 qualified and housed in a 1210 surface-mount package measuring 3.2 mm x 2.5 mm x 2.5 mm.

Feature Summary

AEC-Q200 qualified for automotive reliability
Designed for CAN-BUS signal line protection
Unshielded wire-wound construction

Applications

Automotive CAN-BUS networks
Automobile signal line filtering

Procurement Notes

Verify the specific suffix TL00 against the manufacturer's latest documentation to confirm packaging details and availability. Ensure the design-in process accounts for the specified 150 mA current limit and 1.5 Ohm DCR to prevent performance degradation in the target circuit application.

Selection Notes

Select this component when designing for standard CAN-BUS applications requiring 100 uH inductance. Compare with the ACT1210L variant if higher impedance is needed, or the ACT1210D series for CAN-FD requirements. Confirm that the 1210 footprint and 125°C operating temperature align with the system thermal constraints.

Part Context

This part belongs to the TDK ACT series of common mode filters. These components are engineered specifically for automotive electronics, offering compact surface-mount solutions for noise suppression in high-reliability environments. The series provides various inductance values tailored to different automotive communication protocols.
