ACT32P-102-2P-TL01

$0.92

Description：CMC 800MA 2LN 1KOHM SMD AEC-Q200
Series：ACT32P
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:0c7c573b21ca Category: Common Mode Chokes Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 800MA 2LN 1KOHM SMD AEC-Q200
Series：ACT32P
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：800mA
DC Resistance (DCR) (Max)：150mOhm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 150°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.154" L x 0.098" W (3.90mm x 2.50mm)
Height (Max)：0.098" (2.50mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：1 kOhms @ 100 MHz
Qualification：-
Grade：-

Download product information

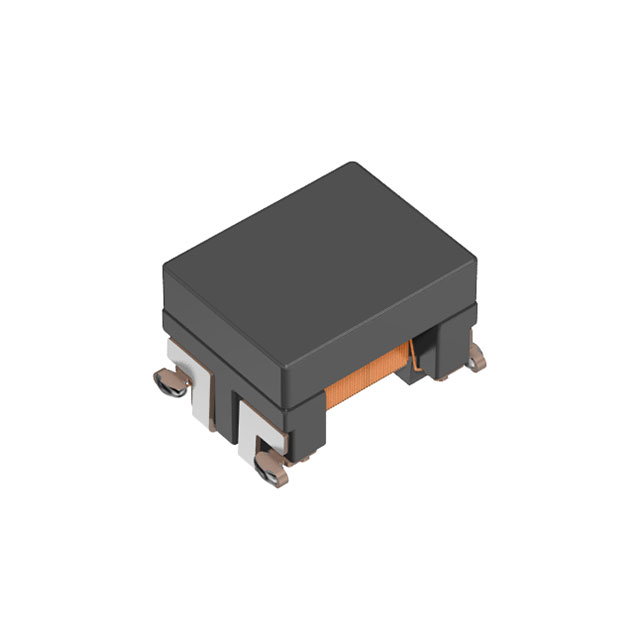

ACT32P-102-2P-TL01

Overview

The TDK ACT32P-102-2P-TL01 is a two-channel common mode filter choke designed for automotive power line applications. It features an inductance of 5.9 µH and a DC resistance of 150 mΩ maximum. The component supports a maximum DC current of 800 mA and withstands up to 80 VDC. It exhibits an impedance of 1 kΩ at 100 MHz. Operating within a temperature range of -55°C to +150°C, it meets AEC-Q200 qualification standards. The device is housed in a compact 1210 (3.2mm x 2.5mm x 2.5mm) surface-mount package.

Feature Summary

AEC-Q200 qualified for automotive reliability requirements
High-temperature operation capability up to +150°C
Compact 1210 surface-mount footprint for space-constrained designs

Applications

Automotive power train circuits
Automotive safety systems
Power line filtering in vehicles

Procurement Notes

Verify the specific part number against official TDK documentation to ensure compatibility with your design requirements. Confirm that the AEC-Q200 qualification status aligns with your automotive application standards. Check the datasheet for precise mechanical dimensions and thermal characteristics before finalizing procurement decisions.

Selection Notes

Select this component when designing automotive power lines requiring robust EMI suppression under high-temperature conditions. The 800 mA current rating and low DC resistance make it suitable for efficient power transmission. Ensure the 1210 package size fits within the available PCB real estate for the target application.

Part Context

This component belongs to the TDK ACT series of common mode chokes. These filters are engineered specifically for automotive environments, offering reliable performance in demanding electrical conditions. The ACT series provides various inductance values and current ratings to suit different power line filtering needs across vehicle systems.
