ACTPAT182-01-IP

Antennas RF Overview

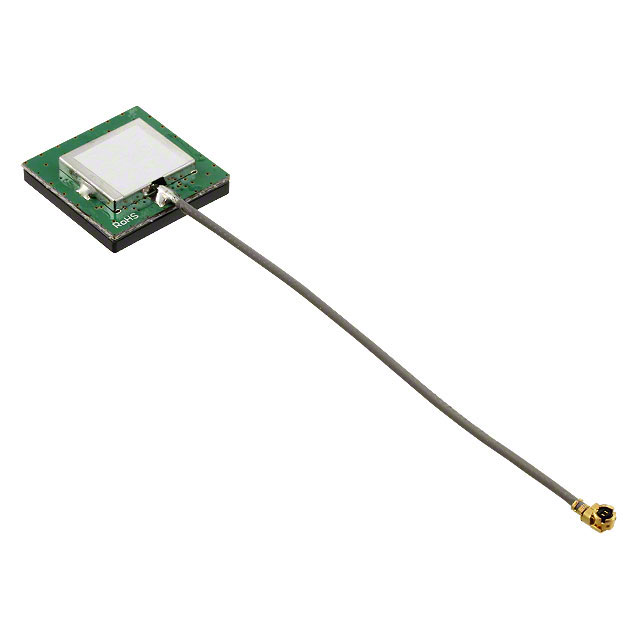

The ACTPAT182-01-IP is a GPS ceramic active antenna manufactured by Inventek Systems. It operates at the L1 frequency of 1.575 GHz and features a U.FL connector interface. The component utilizes a surface-mount patch design with physical dimensions of 18.6 mm x 18.6 mm x 4.9 mm. This active configuration integrates internal amplification to enhance signal reception for connected GPS receivers.

Antennas RF Feature Summary

• Active ceramic patch construction for enhanced signal sensitivity
• Integrated low-noise amplifier for improved GPS reception
• Compact surface-mount form factor suitable for embedded integration

Antennas RF Applications

• GPS receiver modules
• Navigation systems
• Location tracking devices

Antennas RF Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct connector type and performance specifications. Confirm that the U.FL interface matches the target PCB layout requirements. Cross-reference the part number with authorized Inventek Systems distributors to validate authenticity and current production status before finalizing procurement orders.

Antennas RF Selection Notes

Select this component when a compact, high-sensitivity GPS solution is required for space-constrained designs. The active nature of the antenna provides superior performance compared to passive alternatives in challenging signal environments. Ensure the host system supports the necessary DC bias voltage for the internal amplifier operation as specified in the technical datasheet.

Antennas RF Part Context

This model belongs to the ACTPAT182 series of GPS antennas from Inventek Systems. The series offers various standard and customized embedded options ranging from system-level packages to module-based solutions. The ACTPAT182-01-IP specifically represents the active ceramic patch variant designed for direct integration into portable and industrial electronic devices requiring precise location data.

Antennas RF Replacement Considerations

Consult Inventek Systems official substitution guides for verified alternative part numbers. Generic RF antennas may not provide equivalent gain or impedance matching characteristics. Verify compatibility with existing RF front-end circuits before implementing any substitute components.
