ACTPAT254-01-IP

Antennas RF Overview

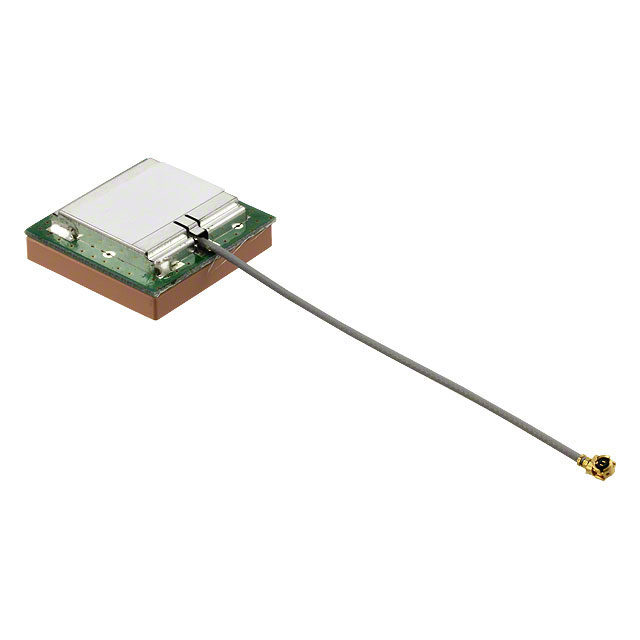

The Inventek Systems ACTPAT254-01-IP is an active GPS ceramic patch antenna designed for L1 band applications. It operates within a frequency range of 1.573 GHz to 1.588 GHz, centered at 1.575 GHz. The component features a U.FL connector interface and is constructed with a ceramic substrate suitable for surface mount integration. This RF antenna supports standard GPS receiver connectivity.

Antennas RF Feature Summary

• Active GPS reception capability utilizing ceramic patch technology
• Integrated U.FL connector for direct receiver attachment
• Optimized for L1 band signal acquisition

Antennas RF Applications

• GPS navigation systems
• Automotive tracking devices
• IoT location modules

Antennas RF Procurement Notes

Verify the specific connector type and mounting configuration against your PCB layout requirements before ordering. Confirm that the active antenna bias voltage matches your receiver's output specifications to ensure proper operation. Check for any required accessories or adapters if direct U.FL connection is not feasible in your assembly design.

Antennas RF Selection Notes

Select this model when a compact, low-profile active GPS solution is required for L1 band signals. Consider the U.FL interface compatibility with your existing RF chain. Evaluate the physical dimensions and mounting style against available board space constraints compared to other active ceramic options in the Inventek portfolio.

Antennas RF Part Context

This part belongs to Inventek Systems' portfolio of wireless and IoT connectivity solutions. The manufacturer specializes in antennas for GPS, Bluetooth, and Wi-Fi applications. The ACTPAT series represents their active ceramic antenna line designed for embedded positioning needs.

Antennas RF Replacement Considerations

The ACTPAT184-01-IP is a documented alternative from the same manufacturer. Verify dimensional differences and connector compatibility before substituting.
