AD5770RBCBZ-RL7

Overview

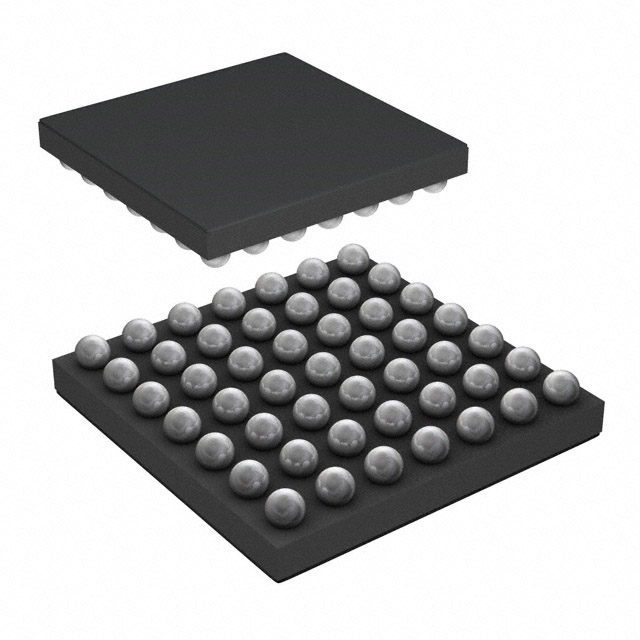

The AD5770RBCBZ-RL7 is a 6-channel, 14-bit current output digital-to-analog converter (DAC) from Analog Devices. It features an integrated 1.25 V voltage reference and precision resistor. Channel 0 supports sourcing up to 300 mA and sinking up to 60 mA, while Channels 1 through 5 offer programmable sourcing ranges. The device utilizes an SPI interface for control and includes diagnostic monitoring for output current, compliance voltage, and die temperature. It operates within a supply range of 2.9 V to 5.5 V and is housed in a 49-ball WLCSP package.

Feature Summary

• Six 14-bit current output channels with programmable ranges
• Integrated 1.25 V on-chip voltage reference
• SPI serial interface with reset function
• Built-in thermal shutdown and alarm capabilities

Applications

• Photonics control systems
• LED driver programmable current sources
• Current mode biasing applications

Procurement Notes

Verify the specific suffix RL7 corresponds to reel packaging when ordering. Confirm that the BC part variant matches the required package and temperature specifications for the intended design environment.

Selection Notes

Select this component for designs requiring multiple independent current outputs with high resolution. Ensure the application can accommodate the required PVDD headroom and AVEE negative supply rail for optimal performance across all channels.

Part Context

This part belongs to the AD5770R series of multi-channel DACs. It is designed specifically for applications needing precise current control without external reference components. The device integrates monitoring functions to simplify system diagnostics.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
