AD8605ACBZ-REEL

Overview

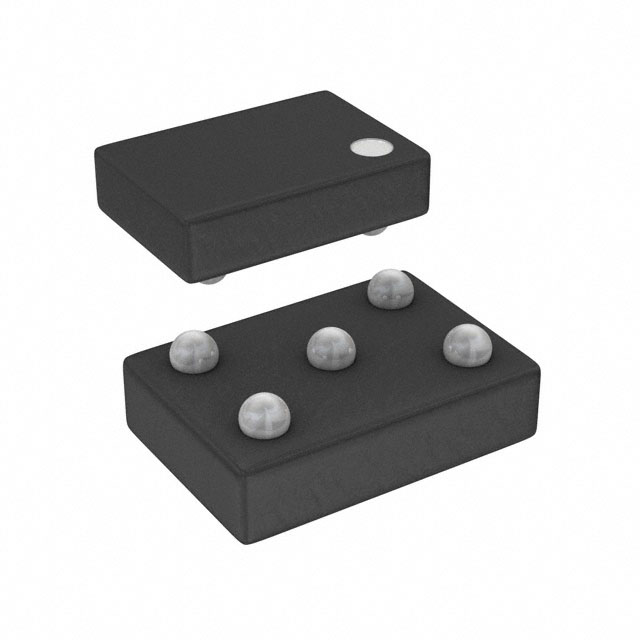

The AD8605ACBZ-REEL is a single-channel, precision, low-noise CMOS operational amplifier featuring rail-to-rail input and output capabilities. It operates on a single supply voltage ranging from 2.7 V to 5.5 V. The device utilizes Analog Devices' patented DigiTrim® trimming technique to achieve superior precision without laser trimming. Key electrical specifications include a maximum offset voltage of 65 µV, a maximum input bias current of 1 pA, and a voltage noise density of 8 nV/√Hz at 1 kHz. It offers a unity-gain bandwidth of 10 MHz and a slew rate of 5 V/µs. The component is housed in a 5-ball WLCSP package and is specified for operation across the extended industrial temperature range of −40°C to +125°C.

Feature Summary

• Utilizes patented DigiTrim® trimming technology to achieve high precision without laser trimming.
• Features rail-to-rail input and output swing for maximum dynamic range in single-supply applications.
• Provides very low input bias current and low offset voltage for accurate signal processing.
• Operates stably with unity gain and maintains phase stability without phase reversal under overdrive conditions.

Applications

• Photodiode amplification
• Battery-powered instrumentation
• Multipole filters
• Sensors
• Audio

Procurement Notes

Verify that the ordering suffix 'CBZ' corresponds to the 5-ball WLCSP package configuration as defined in the official Analog Devices datasheet. Confirm that the 'REEL' designation indicates tape-and-reel packaging. Ensure the component meets RoHS compliance requirements by checking the specific manufacturing lot documentation against the manufacturer's standards.

Selection Notes

Select this component when designing circuits requiring high precision and low noise within a compact footprint. The 5-ball WLCSP package provides the smallest available surface area for surface-mounted operational amplifiers. Consider the device for applications demanding rail-to-rail performance and extended industrial temperature stability, such as portable medical devices or battery-operated sensors.

Part Context

The AD8605 is part of the AD8605/AD8606/AD8608 family of precision, low-noise, CMOS, rail-to-rail input/output operational amplifiers manufactured by Analog Devices Inc. This family includes single, dual, and quad channel variants designed for various space-constrained applications. The AD8605 specifically serves as the single-channel solution within this lineup, sharing core performance characteristics like low offset voltage and wide bandwidth with its multi-channel counterparts.

Replacement Considerations

Public confirmed substitute part numbers are not provided in the source material.

FAQ

Does the AD8605 exhibit output phase reversal?

No, the AD8605 does not exhibit output phase reversal even for inputs exceeding the supply voltage by more than 2 V.

What is the maximum input bias current specification?

The maximum input bias current is 1 pA.
