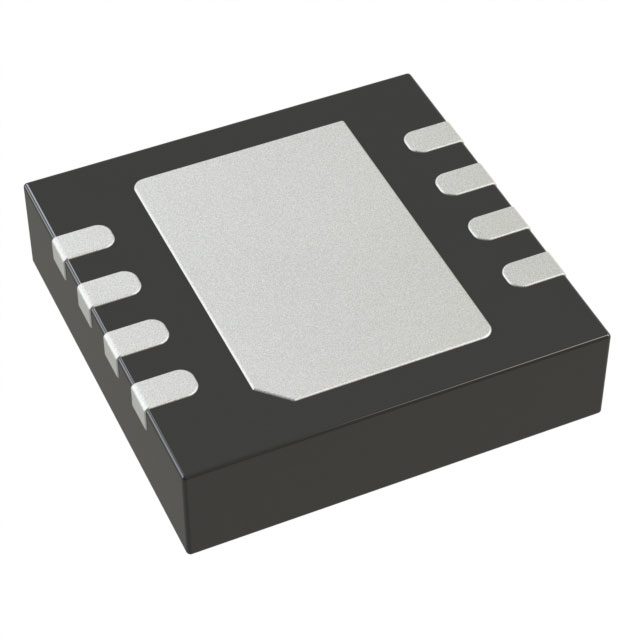

AD8639ACPZ-REEL7

Overview

The AD8639ACPZ-REEL7 is a dual-channel, precision operational amplifier manufactured by Analog Devices Inc. It features an auto-zero architecture with rail-to-rail output swing and operates on supply voltages from 5 V to 16 V single-supply or ±2.5 V to ±8 V dual-supply. Key electrical parameters include a maximum offset voltage of 9 μV, a maximum input bias current of 40 pA, and a typical gain bandwidth product of 1.5 MHz. The device provides high common-mode rejection ratio (CMRR) and power supply rejection ratio (PSRR), ensuring accurate signal processing in demanding environments.

Feature Summary

• Patented auto-zero topology combining low-frequency noise reduction with minimized switching noise energy for high signal-to-noise ratios without external filtering.
• Rail-to-rail output capability maximizes the available dynamic range and signal-to-noise ratio across the full operating temperature range.
• Extremely low offset voltage and drift characteristics maintain high DC accuracy over extended industrial temperature ranges.

Applications

• Pressure and position sensors
• Strain gage amplifiers
• Medical instrumentation
• Thermocouple amplifiers

Procurement Notes

Verify the specific package type and reel configuration against official documentation before procurement. Confirm that the component meets all required environmental specifications for the intended application environment. Ensure compatibility with existing circuit designs regarding input voltage ranges and supply requirements.

Selection Notes

Select this component when high DC precision and low drift are critical requirements. Consider the rail-to-rail output feature if maximizing signal swing is necessary. Evaluate the trade-off between the auto-zero architecture's noise profile and traditional chopper-stabilized amplifiers based on specific system bandwidth needs.

Part Context

The AD8639 is part of the AD8638/AD8639 series of wide bandwidth, auto-zero amplifiers. While the AD8638 is a single-channel variant, the AD8639 provides dual channels in compact packages including LFCSP, MSOP, and SOIC. This series is designed to offer benefits typically found in more expensive zero-drift amplifiers at a lower cost point.

Replacement Considerations

Direct functional replacements within the same family include the AD8638 for single-channel applications. Verify pinout compatibility and thermal resistance specifications when substituting between different package types such as LFCSP, MSOP, or SOIC.

FAQ

Does the AD8639 require external capacitors for its auto-zero function?

No, the AD8639 does not require external capacitors for its internal auto-zeroing operation.

What is the mechanism behind the AD8639's low noise performance?

It uses a patented ping-pong arrangement combining auto-zeroing and chopping to reduce both low-frequency noise and noise energy at switching frequencies.
