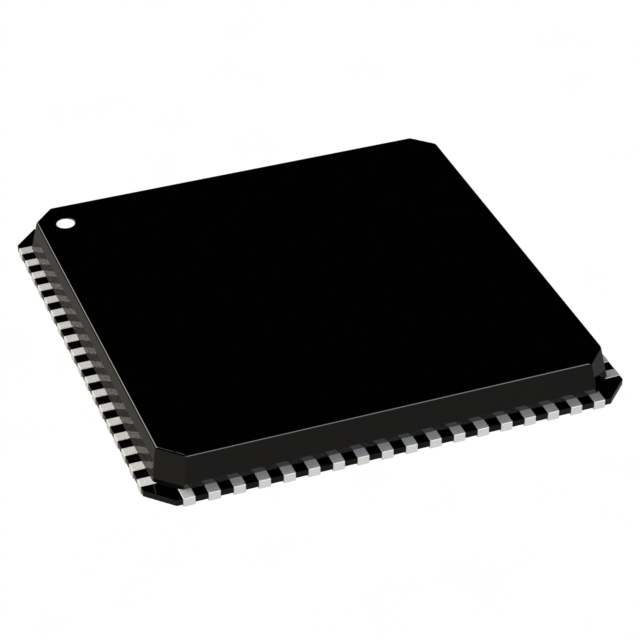

AD9094BCPZ-1000

Overview

The AD9094BCPZ-1000 is an 8-bit, 1 GSPS quad analog-to-digital converter (ADC) featuring JESD204B coded serial digital outputs with lane rates up to 15 Gbps. It operates on 0.9 V, 1.8 V, and 2.5 V DC supplies with a total power dissipation of 1.6 W at 1 GSPS. The device provides a 1.4 GHz analog input full power bandwidth and supports flexible differential input voltage ranges from 1.44 V p-p to 2.16 V p-p. Key performance metrics include an SFDR of 71 dBFS and an SNR of 48.6 dBFS at 611 MHz with a 1.44 V p-p input range. It includes integrated buffers, an internal voltage reference, and on-chip dithering.

Feature Summary

• JESD204B Subclass 1 and Subclass 0 support for high-speed serialized data output
• Integrated analog input buffers and sample-and-hold circuits
• Programmable fast overrange detection bits for efficient AGC implementation
• On-chip temperature diode for system thermal management

Applications

• Laser imaging, detection, and ranging (LIDAR)
• Communications systems
• Digital oscilloscopes (DSO)
• Ultrawideband satellite receivers
• Instrumentation

Procurement Notes

Verify the specific suffix BCPZ-1000 against the manufacturer's current ordering guide to confirm package type and temperature range specifications. Ensure compatibility with the required JESD204B interface standards and power supply configurations before finalizing procurement orders.

Selection Notes

Select this component when requiring a quad-channel ADC with high linearity and low power consumption. Consider the 1.4 GHz bandwidth and 15 Gbps lane rate capabilities for wideband signal sampling applications. Verify that the system design accommodates the multiple power supply rails and differential clock inputs specified in the datasheet.

Part Context

This part belongs to the Analog Devices AD9094 family of high-speed data converters. It is designed for applications demanding wide input bandwidth and high sampling rates within a compact footprint. The device integrates multiple ADC cores with error correction logic and flexible digital interfaces to simplify system design.

Replacement Considerations

Consult the official Analog Devices product selector guide for verified cross-reference options. Ensure any substitute part matches the pinout, electrical specifications, and package dimensions of the AD9094BCPZ-1000.

FAQ

What is the maximum lane rate supported by the AD9094?

The AD9094 supports JESD204B lane rates up to 15 Gbps.

Does the AD9094 include an internal voltage reference?

Yes, the device features an integrated 0.5 V internal voltage reference.

What is the analog input full power bandwidth?

The analog input full power bandwidth is 1.4 GHz.
