AD9094BCPZRL7-1000

Overview

The AD9094BCPZRL7-1000 is an 8-bit, 1 GSPS quad analog-to-digital converter (ADC) from Analog Devices Inc. It features a multistage differential pipelined architecture with integrated output error correction logic and on-chip buffers. The device supports flexible JESD204B lane configurations with Subclass 0 and Subclass 1 modes, accommodating lane rates up to 15 Gbps. It operates on 0.9 V, 1.8 V, and 2.5 V DC supplies, consuming 1.6 W total power at 1 GSPS. Key specifications include a 1.4 GHz analog input full power bandwidth, 71 dBFS SFDR at 611 MHz, and 48.6 dBFS SNR at 611 MHz. It includes fast detect bits for AGC, an internal voltage reference, and an on-chip temperature diode.

Feature Summary

• JESD204B coded serial digital outputs supporting Subclass 0 and Subclass 1 modes
• Multistage differential pipelined ADC cores with integrated output error correction logic
• On-chip dithering mechanism designed to improve small signal linearity
• Programmable fast overrange detection bits for efficient automatic gain control implementation

Applications

• Laser imaging, detection, and ranging (LIDAR)
• Communications systems
• Digital oscilloscope (DSO)
• Ultrawideband satellite receivers
• Instrumentation

Procurement Notes

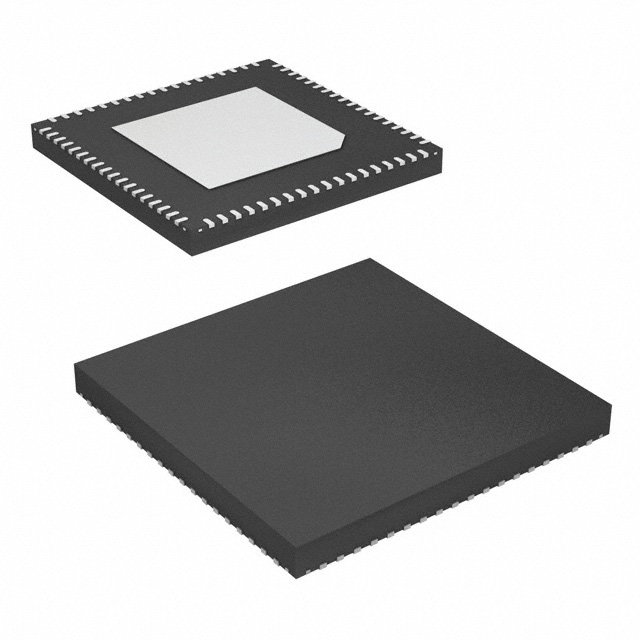

Verify the specific ordering suffix RL7 corresponds to the Tape & Reel packaging configuration when sourcing this component. Confirm that the -1000 speed grade matches the required 1 GSPS sampling rate for the target application. Ensure compatibility with the 72-lead LFCSP-VQ package dimensions during PCB layout planning. Cross-reference the manufacturer's latest datasheet revision to confirm all electrical parameters remain unchanged.

Selection Notes

Select this component for applications requiring high-speed quadruple channel digitization with low power consumption. The integrated analog input buffers simplify external filter design requirements. Consider the available clock divide options of 1, 2, 4, or 8 for system clock flexibility. Evaluate the thermal resistance characteristics against the expected junction temperature range of −40°C to +105°C for reliable operation.

Part Context

This part belongs to the AD9094 series of high-performance data converters. It is distinct from other variants by its specific speed grade and packaging option. The device is optimized for wide input bandwidth and high works linearity within a compact form factor. It serves as a core component in advanced signal processing chains requiring precise analog-to-digital conversion.

Replacement Considerations

Direct pin-compatible replacements are not explicitly documented in the provided source material. Verify functional equivalence regarding JESD204B interface timing and power supply requirements if considering alternative quad-channel ADCs from the same manufacturer family.
