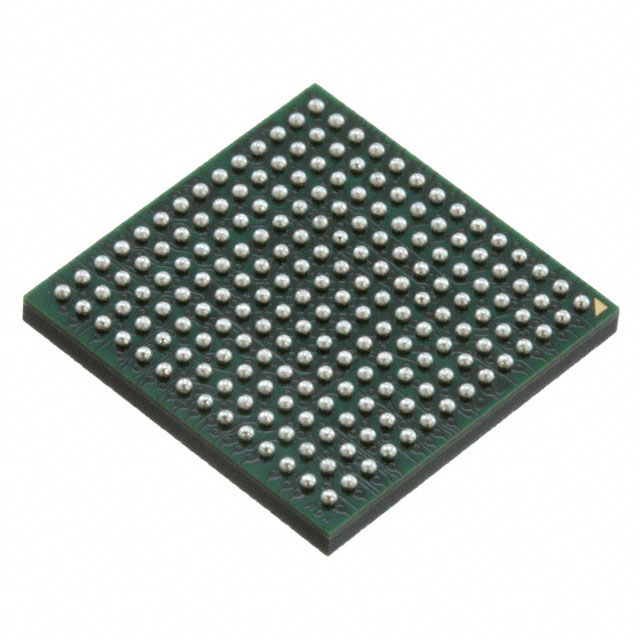

AD9148BBPZ

Overview

The AD9148BBPZ is a quad, 16-bit digital-to-analog converter (DAC) from Analog Devices' TxDAC+ family, operating at a sample rate of 1 GSPS. It features adjustable full-scale output currents ranging from 8.7 mA to 31.7 mA and supports flexible LVDS data interfaces with FIFOs. The device integrates 2×, 4×, and 8× interpolation filters, a fine complex NCO, and programmable digital inverse sinc filters. Powered by 3.3 V analog and 1.8 V digital supplies, it consumes approximately 3 W at maximum rates. Encased in a 196-ball BGA package, it offers high dynamic range performance suitable for direct conversion transmit applications.

Feature Summary

• Quad 16-bit architecture with 1 GSPS sampling rate
• Integrated 2×, 4×, and 8× interpolation filters and fine complex NCO
• Adjustable full-scale output current from 8.7 mA to 31.7 mA
• Programmable digital inverse sinc filter and gain/phase compensation

Applications

• Wireless infrastructure including LTE, TD-SCDMA, WiMAX, W-CDMA, CDMA2000, and GSM
• MIMO and transmit diversity systems
• Digital high or low IF synthesis

Procurement Notes

Verify the specific suffix 'BPZ' against the manufacturer's ordering guide to confirm the exact package variant, as this designation indicates the standard 196-ball CSP_BGA without an attached heat spreader. Ensure compatibility with system thermal requirements, as this package type has higher thermal resistance compared to heat-spreader options. Confirm RoHS compliance status through official documentation prior to integration.

Selection Notes

Select the AD9148BBPZ when a quad-channel solution with integrated interpolation is required for wideband signal synthesis. Evaluate the thermal dissipation capabilities of the standard BGA package against the system's power budget, particularly if operating near the 1 GSPS maximum rate. Consider the BGA_ED variant if enhanced thermal performance via an integrated heat spreader is necessary for high-power operation scenarios.

Part Context

The AD9148BBPZ belongs to the AD9148 series, which includes variants like the AD9148BBCZRL. These devices share core specifications but differ in packaging and shipping formats. The BBPZ specifically denotes the tray-shipped, standard BGA package version, distinguishing it from reel-based or heat-spreader-equipped alternatives within the same product family.

Replacement Considerations

The AD9148BBCZRL serves as a functional equivalent within the same family, offering identical electrical characteristics but differing in packaging format (reel vs. tray). Verify pinout and register compatibility before substitution.
