AD9213BBPZ-10G

Overview

The AD9213BBPZ-10G is a single-channel, 12-bit RF analog-to-digital converter (ADC) operating at a maximum sampling rate of 10.25 GSPS with a 6.5 GHz input bandwidth. It features a differential analog input with a 1.4 V p-p full-scale range and 50 Ω internal termination. The device utilizes a 16-lane JESD204B interface supporting up to 16 Gbps line rates. Key performance metrics include a typical noise spectral density of -153 dBFS/Hz at 170 MHz and an SFDR of 70 dBFS at 1000 MHz. Total power dissipation is typically 5.93 W. It operates within a junction temperature range of -20°C to +115°C.

Feature Summary

• Integrated digital downconverter (DDC) with numerically controlled oscillator (NCO) for frequency translation and decimation
• Proprietary calibration and randomization techniques to suppress interleaving spurious artifacts
• Supports sample-accurate multichip synchronization with NCO alignment capabilities
• On-chip negative voltage generators and fast overrange detection for efficient AGC

Applications

• High dynamic range frequency and time domain applications requiring wide instantaneous bandwidth
• Direct RF sampling radio systems including software-defined radios
• Military and aerospace radar and secure communications
• Portable instrumentation and medical ultrasound equipment

Procurement Notes

Verify the specific suffix '10G' confirms the 10.25 GSPS speed grade against the official Analog Devices ordering guide. Ensure supply voltages match the specified ranges for the high-speed variant. Confirm package compatibility with the 192-ball BGA footprint during procurement planning.

Selection Notes

Select this model when system requirements demand maximum instantaneous bandwidth exceeding 6 GSPS capabilities. Evaluate thermal management needs due to higher power consumption compared to the 6 GSPS variant. Consider the on-chip DDC if reduced JESD204B lane counts are required for lower bandwidth applications.

Part Context

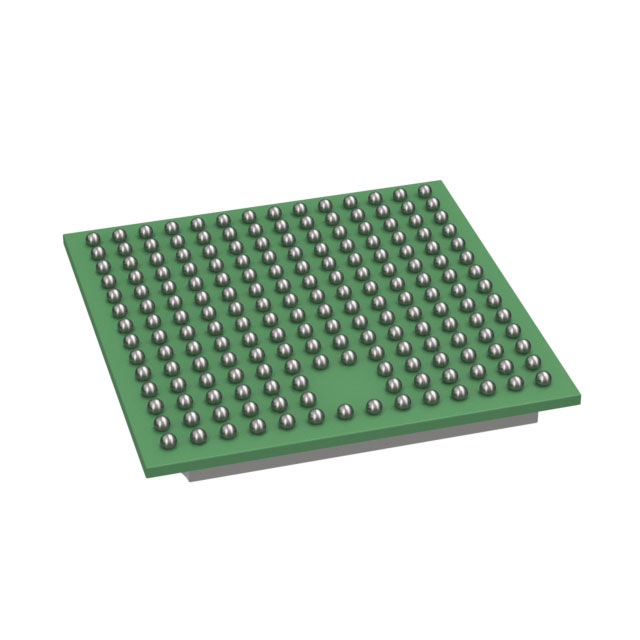

This component belongs to the AD9213 family of high-performance RF ADCs from Analog Devices. It shares the same 192-ball BGA package and core architecture as the 6 GSPS version but is optimized for higher clock frequencies. The family supports JESD204B interfaces and integrated DSP functions common across the series.

Replacement Considerations

The AD9213BBPZ-6G serves as a lower-speed alternative within the same package. Verify that the 6 GSPS variant meets the required instantaneous bandwidth and data throughput before substitution.
