AD9217BBPZ-6G
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：12 BIT ADC JESD204B+ HIGH SPEED
- Series：-
- Mfr：Analog Devices Inc.
- Package：Tray
- Number of Bits：12
- Sampling Rate (Per Second)：6G
- Number of Inputs：1
- Input Type：Differential
- Data Interface：SPI
- Configuration：ADC
- Ratio - S/H:ADC：0:01
- Number of A/D Converters：1
- Architecture：Pipelined
- Reference Type：-
- Voltage - Supply, Analog：-
- Voltage - Supply, Digital：-
- Features：-
- Operating Temperature：-20°C ~ 115°C

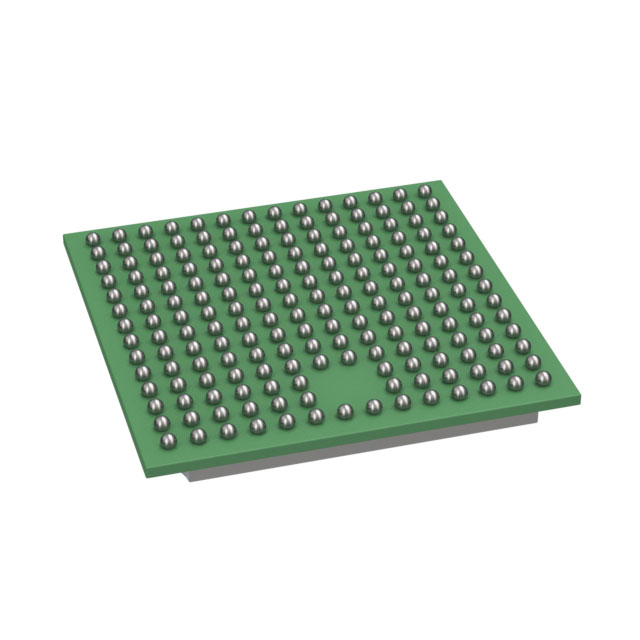

- Package / Case：192-LFBGA Exposed Pad
- Supplier Device Package：192-BGA-ED (12x12)
- Mounting Type：Surface Mount
Download product information
Overview
The AD9217BBPZ-6G is a single-channel, 12-bit radio frequency analog-to-digital converter (ADC) manufactured by Analog Devices Inc. It operates at a maximum sampling rate of 6 GSPS with an integrated input buffer providing a 6.5 GHz full-power bandwidth. The device features a low-latency parallel CML output interface and supports reconfiguration to native AD9213 mode for JESD204B applications. Typical power dissipation is 4.2 W at 6 GSPS. It is housed in a 192-ball BGA-ED package and specified over a junction temperature range of −20°C to +115°C.
Feature Summary
- Integrated input buffer supporting wide instantaneous bandwidth
- Low latency high-speed parallel CML output interface
- Reconfigurable support for AD9213 native mode
- On-chip negative voltage generators and temperature sensor
Applications
- Software-defined radios
- Wireless communication systems
- Test and measurement equipment
- Radar systems
Procurement Notes
Verify the specific ordering suffix against official documentation to confirm the 6 GSPS speed grade. Ensure compatibility with required supply voltages and termination impedances for the CML outputs. Confirm thermal management requirements for the BGA package are met during integration.
Selection Notes
Select this component when a high dynamic range ADC with a 6 GSPS sampling rate is required. Consider the AD9217-10G variant if higher throughput up to 10.25 GSPS is needed. Evaluate the reconfigurable AD9213 mode if JESD204B interface support is necessary for the system architecture.
Part Context
This part belongs to the AD9217 family of RF ADCs from Analog Devices. The family includes variants optimized for different sampling rates, such as the 10.25 GSPS version. These devices utilize an interleaved pipeline architecture with proprietary calibration techniques to suppress interleaving spurious artifacts.
Replacement Considerations
The AD9217-10G is a compatible alternative within the same family offering higher sampling speeds. Verify pinout and electrical specifications match before substitution.
