ADA4870ACPZ

Overview

The ADA4870ACPZ is a single-channel, unity-gain stable current feedback amplifier manufactured by Analog Devices Inc. It delivers a high output drive current of 1 A and a slew rate of 2500 V/µs from a wide supply range of 10 V to 40 V. The device features a large signal bandwidth of 52 MHz and a small signal bandwidth of 70 MHz. It incorporates low noise characteristics with an input voltage noise density of 2.1 nV/√Hz. The amplifier includes integrated short-circuit protection, thermal monitoring, and a shutdown pin for power management.

Feature Summary

• High-speed current feedback architecture enabling rapid signal processing in demanding applications
• Integrated thermal protection and short-circuit flag for enhanced system reliability
• Dedicated shutdown pin for efficient power management and reduced quiescent current consumption

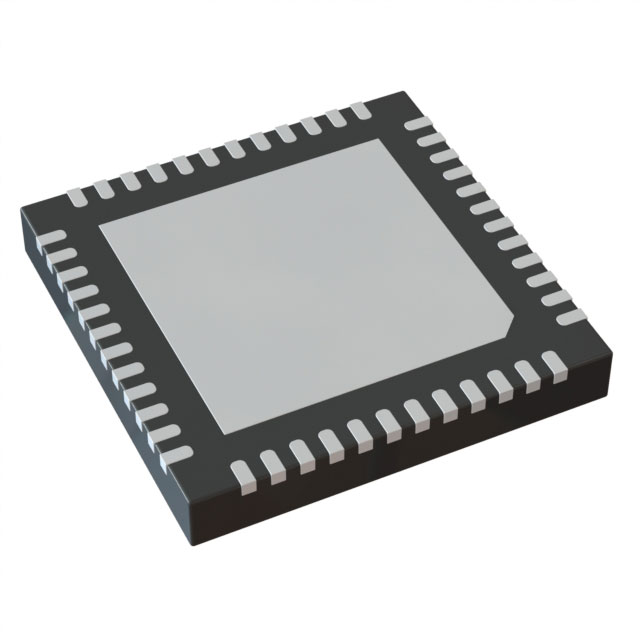

• Exposed thermal pad design facilitating effective heat dissipation in compact layouts

Applications

• Envelope tracking systems
• Power FET drivers
• Ultrasound and piezo transducer drivers
• PIN diode drivers
• Automated test equipment (ATE)

Procurement Notes

Verify the specific package type and manufacturer part number against official documentation before procurement. Confirm that the component meets all required environmental and operational specifications for the intended application. Ensure proper handling procedures are followed due to electrostatic discharge sensitivity. Cross-reference ordering information with authorized distributors to guarantee authenticity and traceability.

Selection Notes

Select this amplifier for applications requiring high output current and fast transient response. Consider the thermal management requirements when designing the printed circuit board layout. Evaluate the feedback resistor values to ensure stability and desired bandwidth. Assess the power supply constraints to match the operating voltage range. Review the safe operating area curves for reliable operation under varying load conditions.

Part Context

The ADA4870ACPZ belongs to the ADA4870 family of high-speed, high-voltage drive amplifiers. It utilizes Analog Devices' proprietary XFCB process technology. The component is designed to replace discrete solutions in applications needing high voltage swing and significant output current drive capabilities.

Replacement Considerations

ADA4870ARRZ is a documented alternative package variant within the same product family.
